ATM0500D19G-T Digital TFT LCD Panel

Quicklinks:

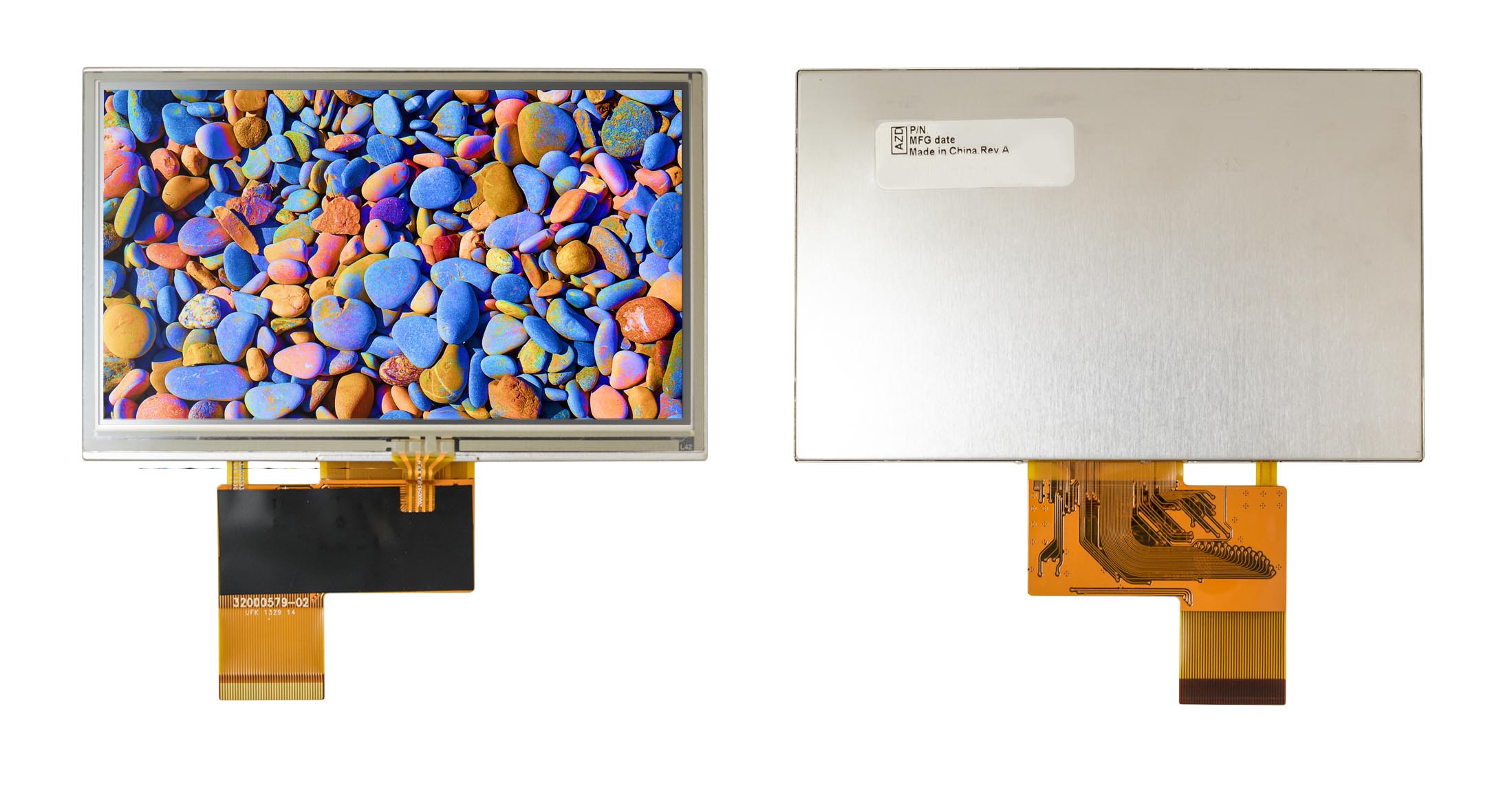

Product Picture:

ATM0500D19G-T Digital TFT LCD Panel Description

5" TFT LCD Display, Full Viewing Angle, 800 x 480, 440 nits, RGB, 40 pin, w/ Resistive TP

Module Specifications

Overall Module Size5"
Resolution800XR.G.B.X480
Brightness (Nits)440
Contrast800
Back LightLED
Viewing Angle+80/-80
+80/-80
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area108.0X64.80mm
Outline Dimension120.7X75.8X4.2mm
Viewing Direction12 O'clock
Pixel ConfigurationStripe
