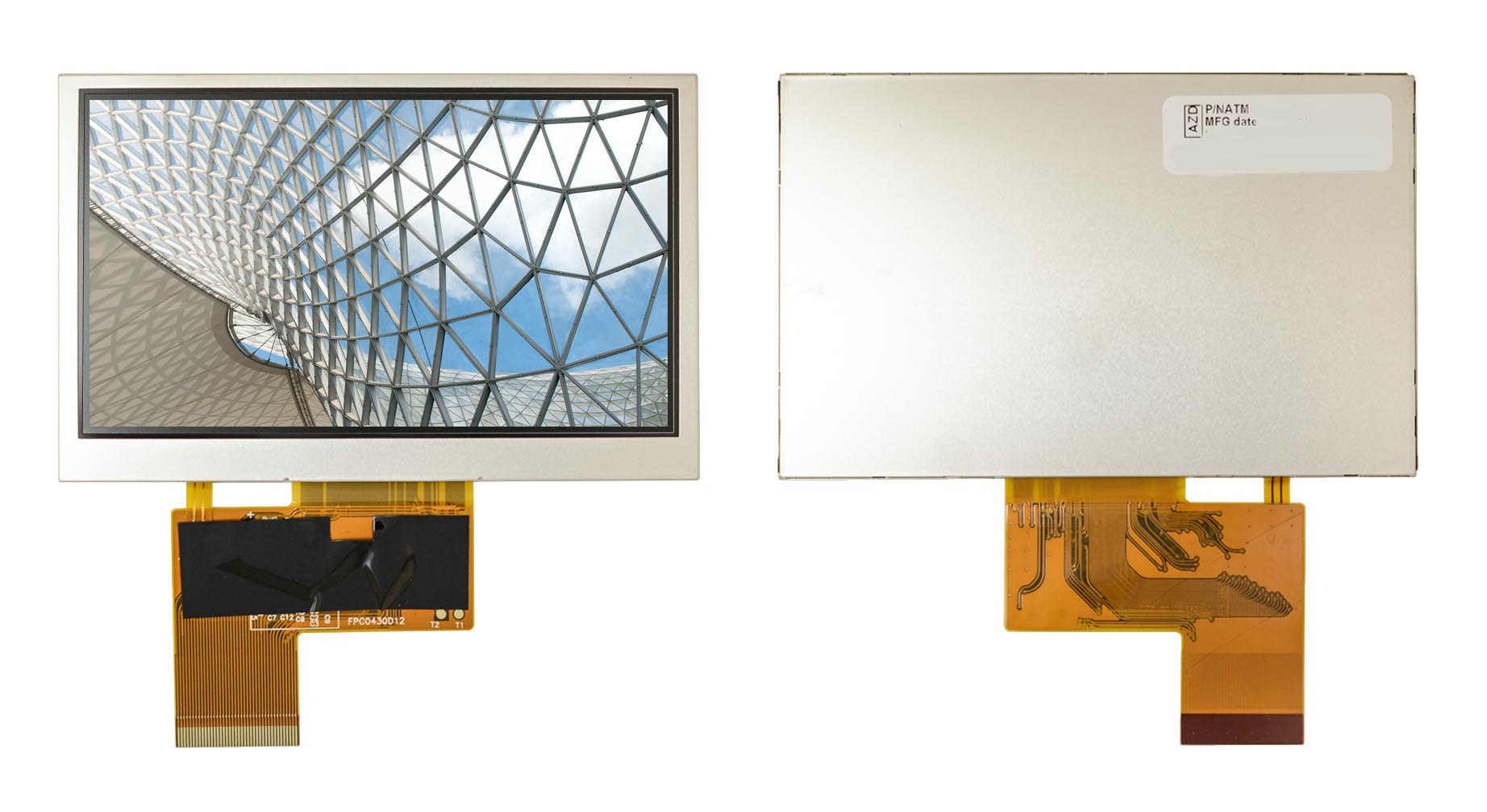

ATM0430D19A Digital TFT LCD Panel
Quicklinks:
ATM0430D19A Digital TFT LCD Panel Description
4.3" TFT LCD Display, 480 x 272, 250 nits, RGB, 45 pinModule Specifications
Overall Module Size | 4.3" |
Resolution | 480XR.G.B.X272 |
Brightness (Nits) | 250 |
Contrast | 500 |
Power Consumption | |
Back Light | LED |
Viewing Angle | +50/-50 +30/-50 |
Weight | 44g |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | Digital RGB |
Active Area | 95.04mmX53.856mm |
Outline Dimension | 105.5X67.2X2.9mm |
Viewing Direction | 12 O'clock |
Bonding Type | COG |
Pixel Configuration | Stripe |
