ATM0350D2 Digital TFT LCD Panel

Quicklinks:

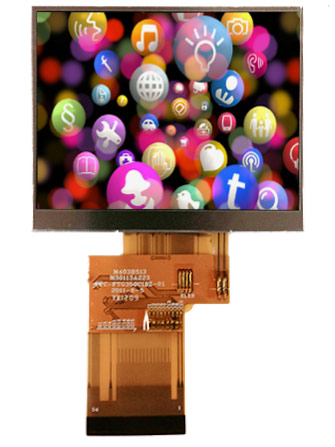

Product Picture:

ATM0350D2 Digital TFT LCD Panel Description

3.5" TFT LCD Display, 320 x 240, 400 nits, RGB, 54 pin

Module Specifications

Overall Module Size3.5"
Resolution320XR.G.B.X240
Brightness (Nits)400
Contrast300
Back LightLED
Viewing Angle+55/-60
+75/-75
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area70.08X52.56 mm
Outline Dimension76.9X63.90X3.2 mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
