Digital TFT LCD Panels

AZ Displays offers a range of Digital TFT Panels from 1.77″ to 15.4″ with an emphasis 4.3” , 5 “, and 7.0” displays.

The list below is our standard offering. However, AZ Displays has many more customized options and special sizes available. Please contact us for more information.

These are our standard parts, for custom solutions contact us.

Development Tools

Selected Filters:

Series 3D PDF Drawing Size Stock Resolution Outline Dimensions (mm) Active Area (mm) Nits Contrast Viewing Angle (Hor. Ver.) Operation Temperature (℃) Interface Controller IC Type
ATM0114B1 - PDF - 1.14 RFQ 135XR.G.B.X240 17.6X31X1.56 mm 14.864X24.912 mm 400 600 +80/-80 -20~+70 4 Wire SPI - -
ATM0128B1 - PDF - 1.28 RFQ 240 X 240 35.6X38X1.55mm 32.4 mm 400 1100 +80/-80 -20~+70 4-wire SPI interface - IPS
ATM0130B3 - PDF - 1.3 Stock Cart 477 240 X 240 26.85X29.55X1.73mm 23.4X23.4mm 500 800 +80/-80 -20~+70 RGB/MCU optional - IPS
ATM0154B1 - PDF - 1.54 Stock Cart 514 240 X 240 31.52X33.72X1.85mm 27.72X27.72mm 500 900 +80/-80 -20~+60 SPI - IPS
ATM0154B5 - PDF - 1.54 RFQ 240XR.G.B.X240 31.52X33.72 mm 27.72X27.72 mm 500 900 +80/-80 -20~+70 SPI - IPS
ATM0177B3A IGS PDF ATM0177B3A PDF 1.77 RFQ 128 X 160 34.70X46.7X2.5mm 28.032X35.04mm 450 500 +70/-70 -10~+60 SPI LCM: ILI9163V -
ATM0177B3A-T IGS PDF ATM0177B3A-T PDF 1.77 Stock Cart 1,450 128 X 160 34.70X46.7X4.0mm 28.032X35.04mm 400 500 +70/-70 -10~+60 SPI LCM: ILI9163V -
ATM0177B3AS - PDF - 1.77 RFQ 128XR.G.B.X160 34.7X46.7 mm 28.03X35.04 mm 500 500 +70/-70 -20~+70 MCU (SPI) - -
ATM0177B5 IGS PDF ATM0177B5 PDF 1.77 RFQ 128 X 160 34.70X46.7X2.5mm 28.032X35.04mm 240 500 +45/-45 -20~+70 MCU LCM: ST7735S -
ATM0200B3 - PDF - 2 Stock Cart 49 240 X 320 34.8X48.8X2.45mm 30.6X40.8mm 800 800 +80/-80 -20~+70 4-wire SPI interface - IPS
ATM0231D2 - PDF - 2.31 Stock Cart 423 320 X 240 51X45.8X2.5mm 46.752X35.06 mm 350 500 +80/-80 -20~+70 18bit RGB - IPS
ATM0240B32A-CT - PDF - 2.4 RFQ 240 X 320 42.72X60.26X3.65mm 36.72X48.96mm 300 - +80/-80 -20~+60 4-wire SPI interface - IPS
ATM0240D35 - PDF - 2.4 RFQ 240XR.G.B.X320 41.72X57.06 mm 36.72X48.96 mm 900 800 +80/-80 -20~+60 MCU/RGB - IPS
ATM0240D35L - PDF - 2.4 RFQ 240XR.G.B.X320 41.72X57.06 mm 36.72X48.96 mm 900 800 +80/-80 -20~+70 MCU/RGB - IPS
ATM0241D1 - PDF - 2.41 RFQ 480XR.G.B.X640 41.72X57.06 mm 36.72X48.96 mm 800 1000 +80/-80 -20~+70 RGB - IPS
ATM0280B23B - PDF - 2.8 RFQ 240 X 320 50.00X69.20X2.5 mm 43.20X57.60 mm 150 300 +65/-65 -20~+70 MPU - -
ATM0280B3 - PDF - 2.8 RFQ 240 X 320 62.4X81.6X2.16mm 43.2X57.6mm 800 800 +80/-80 -20~+70 RGB/MCU optional - IPS
ATM0280B3A - PDF - 2.8 RFQ 240XR.G.B.X320 48.2X67.85 mm 43.2X57.6 mm 1000 800 +80/-80 -20~+70 MCU (RGB) - IPS
ATM0280B44B IGS PDF ATM0280B44B PDF 2.8 RFQ 240 X 320 50.00X69.20X2.7 mm 43.20X57.60 mm 240 480 +45/-45 -20~+70 MPU LCM: ILI9341 -
ATM0280B44C - PDF - 2.8 RFQ 240XR.G.B.X320 50.0X69.2 mm 43.2X57.6 mm 240 480 +45/-45 -20~+70 MCU - -
ATM0350B39 - PDF - 3.5 RFQ 320XR.G.B.X480 83.15X55.04 mm 48.96X73.44 mm 300 500 +70/-70 -20~+70 MCU - -
ATM0350B47B - PDF - 3.5 Stock Cart 75 320XR.G.B.X240 76.9X63.9 mm 70.08X52.56 mm 400 300 +60/-60 -20~+70 MCU/RGB - -
ATM0350B53 - PDF - 3.5 RFQ 320XR.G.B.X480 54.46X82.94 mm 48.96X73.44 mm 300 1000 +85/-85 -20~+70 MCU/RGB - IPS
ATM0350D15 - PDF - 3.5 RFQ 320 X 240 76.90X63.90X3.30mm 70.08X52.56mm 500 800 +80/-80 -20~70 RGB - IPS
ATM0350D15-T - PDF - 3.5 RFQ 320 X 240 76.90X63.90X4.45mm 70.08X52.56mm 400 800 +80/-80 -20~70 RGB - IPS
ATM0350D18 IGS PDF ATM0350D18 PDF 3.5 RFQ 320 X 240 76.9X63.90X3.3 mm 70.08X52.56 mm 400 450 +55/-60 -20~+70 Digital RGB LCM: HX8238 -

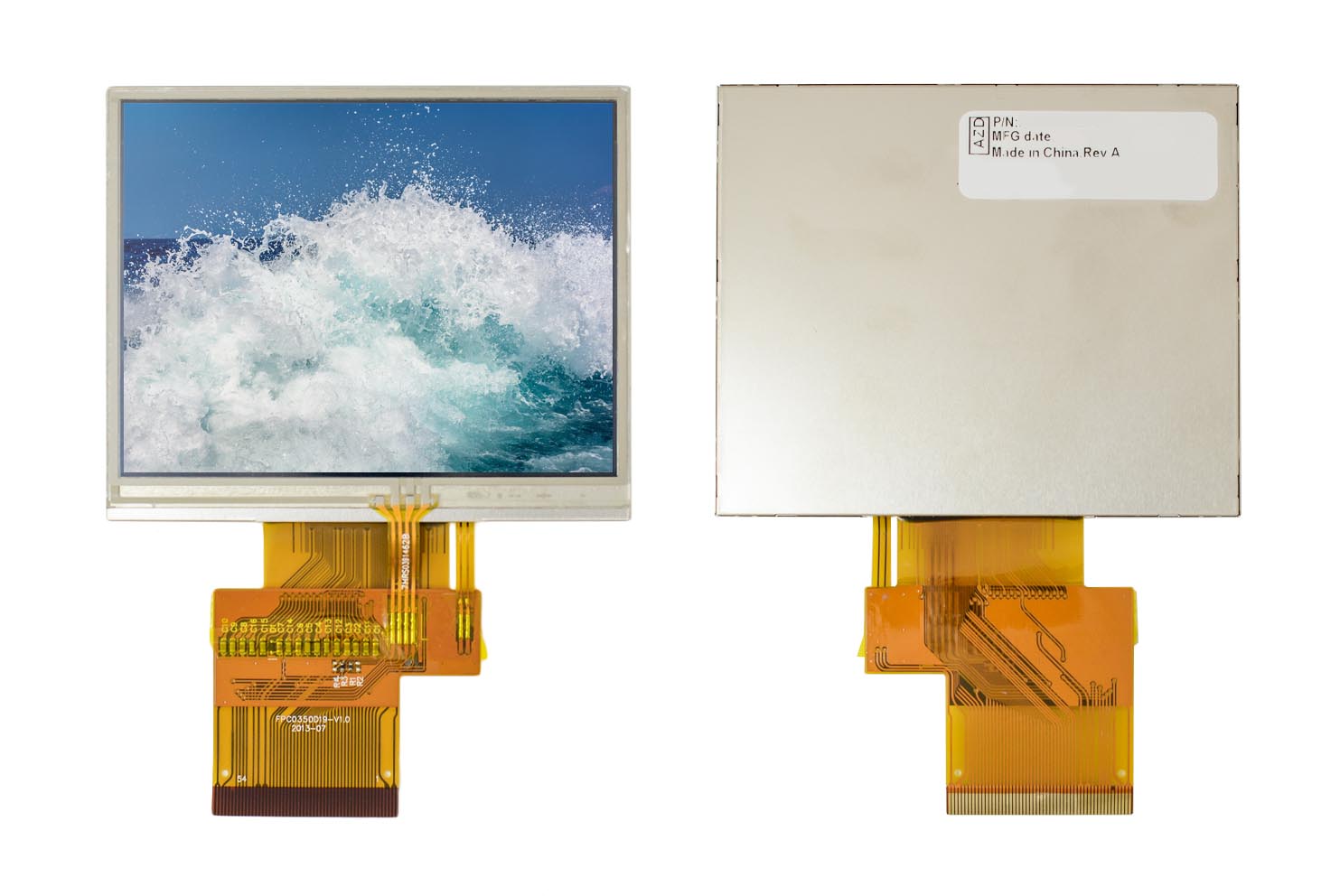

ATM0350D19 IGS PDF ATM0350D19 PDF 3.5 RFQ 320 X 240 77.0X64.0X3.3mm 70.08X52.56mm 625 450 +55/-60 -20~+70 Digital RGB LCM: HX8238 -
ATM0350D19-T IGS PDF ATM0350D19-T PDF 3.5 RFQ 320 X 240 77.0X64.0X4.45mm 70.08X52.56mm 500 450 +55/-60 -20~+70 Digital RGB LCM: HX8238 -
ATM0350D19A IGS PDF ATM0350D19A PDF 3.5 RFQ 320 X 240 77.0X64.0X3.3mm 70.08X52.56mm 500 450 +80/-80 -20~+70 Digital RGB LCM: HX8238 -
ATM0350D2 IGS PDF ATM0350D2 PDF 3.5 RFQ 320 X 240 76.9X63.90X3.2 mm 70.08X52.56 mm 400 300 +55/-60 -20~+70 Digital RGB LCM: HX8238 -
ATM0350D2-T IGS PDF ATM0350D2-T PDF 3.5 RFQ 320 X 240 76.9X63.90X4.4 mm 70.08X52.56 mm 320 300 +55/-60 -20~+70 Digital RGB LCM: HX8238 -
ATM0350D59 - PDF - 3.5 RFQ 320XR.G.B.X240 76.90X63.90 mm 70.08X52.56 mm 1000 800 +80/-80 -30~+70 RGB - IPS
ATM0350D59B-T - PDF - 3.5 RFQ 320XR.G.B.X240 76.85X63.90 mm 70.08X52.56 mm 400 800 +80/-80 -20~+70 RGB - IPS
ATM0400D1K - PDF - 4 Stock Cart 6 480 X 480 77.00X80.00X2.50mm 71.86X70.18mm 1000 800 +80/-80 -20~+80 RGB - IPS
ATM0430D12 IGS PDF ATM0430D12 PDF 4.3 RFQ 480 X 272 105.58X67.2X2.9 mm 95.04X53.856 mm 500 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D12-CT IGS PDF ATM0430D12-CT PDF 4.3 RFQ 480 X 272 105.5X67.2X4.45 95.04X53.856 430 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480
TP: FT5216 		-
ATM0430D12-T IGS PDF ATM0430D12-T PDF 4.3 RFQ 480 X 272 105.58X67.2X4.05 mm 95.04X53.856 mm 400 500 +70/-50 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D12B IGS PDF ATM0430D12B PDF 4.3 RFQ 480 X 272 105.5X67.2X2.9mm 95.04X53.856 mm 800 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D12B-CT IGS PDF ATM0430D12B-CT PDF 4.3 RFQ 480 X 272 105.5X67.2X4.45mm 95.04X53.856 mm 720 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480
TP: FT5216 		-
ATM0430D12B-T IGS PDF ATM0430D12B-T PDF 4.3 RFQ 480 X 272 105.5X67.2X4.05mm 95.04X53.856 mm 700 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D12M IGS PDF ATM0430D12M PDF 4.3 Stock Cart 523 480 X 272 105.58X67.2X2.9 mm 95.04X53.856 mm 1300 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D12M-CT IGS PDF ATM0430D12M-CT PDF 4.3 RFQ 480 X 272 105.5X67.2X4.45mm 95.04X53.856 mm 1100 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480
TP: FT5216 		-
ATM0430D12M-T IGS PDF ATM0430D12M-T PDF 4.3 RFQ 480 X 272 105.5X67.2X4.05mm 95.04X53.856 mm 1000 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D19A IGS PDF ATM0430D19A PDF 4.3 RFQ 480 X 272 105.5X67.2X2.9mm 95.04mmX53.856mm 250 500 +50/-50 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D19A-T IGS PDF ATM0430D19A-T PDF 4.3 RFQ 480 X 272 105.5X67.2X4.3mm 95.04mmX53.856mm 200 500 +70/-70 -20~+70 Digital RGB LCM: ILI6480 -
ATM0430D44 - PDF - 4.3 Stock Cart 496 800 X 480 105.50X67.20X2.60mm 95.04X53.856mm 700 800 +80/-80 -20~+80 RGB - IPS
ATM0430D44-CT - PDF - 4.3 Stock Cart 23 800 X 480 105.50X67.20X4.15mm 95.04X53.856mm 600 800 +80/-80 -20~+80 RGB - IPS
ATM0430D44-T - PDF - 4.3 Stock Cart 14 800 X 480 105.50X67.20X3.75mm 95.04X53.856mm 550 800 +80/-80 -20~+80 RGB - IPS
ATM0430D52-T - PDF - 4.3 RFQ 480 X 272 105.5X67.2X4.05mm 95.04X53.856mm 400 - +80/-80 -20~+70 RGB - IPS
ATM0430D62B-CT - PDF - 4.3 RFQ 800XR.G.B.X480 105.5X67.2 mm 95.04X53.856 mm 500 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0430D62B-T - PDF - 4.3 RFQ 800XR.G.B.X480 105.5X67.2 mm 95.04X53.856 mm 450 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0430D62K - PDF - 4.3 RFQ 800 X 480 105.5X67.2X2.85mm 95.04X53.856mm 1000 - +80/-80 -20~+70 24bit RGB interface - IPS
ATM0430D62K-CT - PDF - 4.3 RFQ 800 X 480 105.5X67.2X4.4mm 95.04X53.856mm 850 - +80/-80 -20~+70 24bit RGB interface - IPS
ATM0430D68 - PDF - 4.3 RFQ 480XR.G.B.X272 105.4X67.1 mm 95.04X53.856 mm 600 800 +85/-85 -20~+70 RGB 24bi - IPS
ATM0430D68-T - PDF - 4.3 RFQ 480XR.G.B.X272 105.4X67.1 mm 95.04X53.856 mm 400 800 +85/-85 -20~+70 RGB 24bi - IPS
ATM0458D1 - PDF - 4.58 RFQ 320 X 960 41.57x118.8x2.5mm 36.768x110.304 mm 450 1000 +80/-80 -20~+70 18bit RGB interface - IPS
ATM0499M1A - PDF - 4.99 Stock Cart 50 720XR.G.B.X1280 66.5X119.6 mm 62.1X110.4 mm 700 1200 +80/-80 -20~+70 MIPI - IPS
ATM0500D12 IGS PDF ATM0500D12 PDF 5 RFQ 480 X 272 120.7X75.8X3.10mm 110.88X62.832mm 350 800 +70/-70 -20~+60 Digital RGB LCM: ILI6480 -
ATM0500D27 - PDF - 5 RFQ 800 X 480 120.70X75.80X3.00mm 108.00X64.80mm 400 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27-CT - PDF - 5 Stock Cart 19 800 X 480 120.70X75.80X4.25mm 108.00X64.80mm 350 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27-T - PDF - 5 RFQ 800 X 480 120.70X75.80X4.20mm 108.00X64.80mm 300 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27B - PDF - 5 RFQ 800 X 480 120.70X75.80X3.00mm 108.00X64.80mm 700 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27B-CT - PDF - 5 RFQ 800 X 480 120.70X75.80X4.25mm 108.00X64.80mm 600 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27B-T - PDF - 5 RFQ 800 X 480 120.70X75.80X4.20mm 108.00X64.80mm 550 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27K - PDF - 5 RFQ 800 X 480 120.70X75.80X3.00mm 108.00X64.80mm 1100 1000 +80/-80 -20~+80 RGB - IPS
ATM0500D27K-CT - PDF - 5 Stock Cart 5 800 X 480 120.70X75.80X4.25mm 108.00X64.80mm 950 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D27K-T - PDF - 5 Stock Cart 275 800 X 480 120.70X75.80X4.20mm 108.00X64.80mm 900 1000 +80/-80 -20~+70 RGB - IPS
ATM0500D35 - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 400 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0500D35-CT - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 350 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0500D35-T - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 300 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0500D35B - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 700 1200 +80/-80 -20~+70 RGB 24bi - IPS
ATM0500D35B-CT - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 600 1200 +80/-80 -20~+70 RGB 24bit - IPS
ATM0500D35B-T - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 550 1200 +80/-80 -20~+70 RGB 24bit - IPS
ATM0500D35K - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 1000 1200 +80/-80 -20~+70 RGB 24bit - IPS
ATM0500D35K-CT - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 950 1200 +80/-80 -20~+70 RGB 24bit - IPS
ATM0500D35K-T - PDF - 5 RFQ 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 900 1200 +80/-80 -20~+70 RGB 24bit - IPS
ATM0500H1 - PDF - 5 Stock Cart 40 800 X 480 121.0X89.5X5.75mm 108.0X64.8Xmm 400 1000 +85/-85 -20~+70 HDMI - IPS
ATM0500H1-CT - PDF - 5 Stock Cart 19 800 X 480 121.0X89.5X7.0mm 108.0X64.8Xmm 350 1000 +80/-80 0~+70 HDMI - IPS
ATM0500L19B IGS PDF ATM0500L19B PDF 5 RFQ 800 X 480 120.7X75.8X7.4mm 108.0X64.80mm 500 800 +80/-80 -20~+70 LVDS LCM: HX8264 -
ATM0500L27B - PDF - 5 RFQ 800 X 480 120.70X75.80X3.00mm 108.00X64.80mm 700 1000 +80/-80 -20~70 RGB - IPS
ATM0500M27K - PDF - 5 Stock Cart 44 800XR.G.B.X480 120.7X75.8 mm 108.0X64.8 mm 1100 1000 +80/-80 -20~+70 MIPI - IPS
ATM0500U21 - PDF - 5 RFQ 480 X 272 143.5X80.9X6.09mm 110.88X62.832mm 350 1200 +70/-70 -20~+60 UART - -
ATM0500U21-T - PDF - 5 RFQ 480 X 272 143.5X80.9X8.05mm 110.88X62.832mm 280 1200 +70/-70 -20~+60 UART - -
ATM0500U27 - PDF - 5 RFQ 800 X 400 143.5X80.9X6.08mm 108.0X64.8mm 400 1200 +70/-70 -20~+60 UART - -
ATM0500U27-CT - PDF - 5 RFQ 800 X 480 143.5X80.9X8.05mm 108.0X64.8mm 350 1200 +70/-70 -20~+60 UART - -
ATM0500U27-T - PDF - 5 RFQ 800 X 400 143.5X80.9X8mm 108.0X64.8Xmm 300 - +85/-85 -20~+70 UART - IPS
ATM0680L3 - PDF - 6.8 RFQ 480 X 1280 66.6X181X4.5 mm 60.22X160.59 mm 450 800 +80/-80 -20~+70 MIPI - IPS
ATM0680L3-CT - PDF - 6.8 RFQ 480 X 1280 72.75X181.00X6.60 60.22X160.59mm 380 1000 +80/-80 -20~+80 MIPI 4-L - IPS
ATM0680L3A - PDF - 6.8 RFQ 480 X 1280 66.6X181X4.5 mm 60.22X160.59 mm 1100 1000 +80/-80 -20~+70 MIPI - IPS
ATM0680L3A-CT - PDF - 6.8 RFQ 480 X 1280 120.70X75.80X4.20mm 108.00X64.80mm 920 1000 +80/-80 -20~+80 MIPI 4-L - IPS
ATM0680M3 - PDF - 6.86 RFQ 480XR.G.B.X1280 66.80X181.10 mm 60.192X160.512 mm 450 1500 +80/-80 -20~+70 MIPI - IPS
ATM0680M3A - PDF - 6.86 RFQ 480XR.G.B.X1280 66.80X181.10 mm 60.192X160.512 mm 1100 1500 +80/-80 -20~+70 MIPI - IPS
ATM0700D12B IGS PDF ATM0700D12B PDF 7 RFQ 800 X 480 164.9X100.0X5.7 mm 154.08X85.92mm 500 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D12B-T IGS PDF ATM0700D12B-T PDF 7 RFQ 800 X 480 164.9X100.0X7.1 mm 154.08X85.92mm 400 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D38B IGS PDF ATM0700D38B PDF 7 Stock Cart 50 800 X 480 164.90X100.0X3.5 mm 153.6X86.64mm 700 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D38B-CTN STP PDF - 7 Stock Cart 50 800 X 480 164.8X100.0X5.07 mm 154.08X85.92mm 590 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D38B-T IGS PDF ATM0700D38B-T PDF 7 RFQ 800 X 480 164.8X100.0X4.9 mm 154.08X85.92mm 590 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D6B IGS PDF ATM0700D6B PDF 7 RFQ 800 X 480 164.9X100.0X5.7 mm 154.08X85.92 mm 500 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D6B-CTN STP PDF - 7 RFQ 800 X 480 164.90X100X7.25 mm 154.08X85.92 mm 430 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D6B-T IGS PDF ATM0700D6B-T PDF 7 RFQ 800 X 480 164.9X100.0X7.1 mm 154.08X85.92 mm 400 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D6J IGS PDF ATM0700D6J PDF 7 RFQ 800 X 480 165.0X100.0X5.8mm 154.08X85.92mm 1000 500 +50/-70 -20~+70 Digital RGB - -
ATM0700D6J-CTN - PDF - 7 RFQ 800 X 480 164.90X100X5.8mm 154.08X85.92mm 850 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D6J-T IGS PDF ATM0700D6J-T PDF 7 RFQ 800 X 480 164.9X100.0X5.8 mm 154.08X85.92 mm 800 500 +70/-70 -20~+70 Digital RGB - -
ATM0700D8C - PDF - 7 RFQ 800XR.G.B.X480 164.90X100.00 mm 154.08X85.92 mm 500 500 +70/-70 -20~+70 RGB 24bit - TFT
ATM0700D8C-CTN - PDF - 7 RFQ 800XR.G.B.X480 164.90X100.00 mm 154.08X85.92 mm 425 500 +70/-70 -20~+70 RGB 24bit - TFT
ATM0700H1 - PDF - 7 Stock Cart 50 800 X 480 164.9X124.27X8.4mm 154.8X85.92Xmm 500 1000 +85/-85 -20~+70 HDMI - IPS
ATM0700H1-CT - PDF - 7 Stock Cart 49 800 X 480 164.9X124.27X10mm 154.8X85.92Xmm 430 1000 +70/-70 0~+70 HDMI - IPS
ATM0700L47 - PDF ATM0700L47 PDF 7 RFQ 1024 X 600 164.9X100.0X7.1 mm 154.21X85.92 mm 500 600 +80/-80 -20~+70 LVDS - -
ATM0700L61 STP PDF - 7 Stock Cart 10 1024 X 600 164.80X100.00X3.50mm 154.20X85.92mm 600 1000 +80/-80 -20~+70 SELB - IPS
ATM0700L61-CT STP PDF - 7 Stock Cart 6 1024 X 600 176.42X115.70X 5.10mm 154.21X85.62mm 450 800 +80/-80 -20~+70 SELB - IPS
ATM0700L61-T - PDF - 7 RFQ 1024 X 600 164.9X100.0X4.9mm 154.21X85.92mm 450 800 +80/-80 -20~+70 SELB - IPS
ATM0700L61K - PDF - 7 RFQ 1024 X 600 164.90X100.00X5.70mm 154.21X85.92mm 1000 1000 +80/-80 -20~+70 SELB - IPS
ATM0700L61K-CT - PDF - 7 Stock Cart 23 1024 X 600 184.9X120.00X9.00mm 154.2X85.92mm 1000 800 +80/-80 -20~+70 SELB - IPS
ATM0700L61K-T - PDF - 7 RFQ 1024 X 600 164.80X100.00X7.10mm 154.21X85.92mm 1000 800 +80/-80 -20~+70 SELB - IPS
ATM0700L6B IGS PDF ATM0700L6B PDF 7 RFQ 800 X 480 164.9X100.0X10.6 mm 154.08X85.92 mm 500 500 +70/-70 -20~+70 LVDS - -
ATM0700L6B-CTN STP PDF - 7 RFQ 800 X 480 164.9X100.0X12.5 mm 154.08X85.92 mm 430 500 +70/-70 -20~+70 LVDS - -
ATM0700L6B-T IGS PDF ATM0700L6B-T PDF 7 RFQ 800 X 480 164.9X100.0X12.5 mm 154.08X85.92 mm 400 500 +70/-70 -20~+70 LVDS - -
ATM0700L6J IGS PDF ATM0700L6J PDF 7 RFQ 800 X 480 164.9X100.0X10.6 mm 154.08X85.92 mm 1000 500 +70/-70 -20~+70 LVDS - -
ATM0700L6J-CTN STP PDF - 7 RFQ 800 X 480 164.9X100.0X12.5 mm 154.08X85.92 mm 850 500 +70/-70 -20~+70 LVDS - -
ATM0700L6J-T IGS PDF ATM0700L6J-T PDF 7 RFQ 800 X 480 164.9X100.0X12.5 mm 154.08X85.92 mm 850 500 +70/-70 -20~+70 LVDS - -
ATM0700L6L IGS PDF - 7 RFQ 800 X 480 166.1X101.2X11.5 mm 154.08X85.92 mm 1000 500 +70/-70 -20~+70 LVDS - -
ATM0700L6L-CTN - PDF - 7 RFQ 800XR.G.B.X480 166.1X101.2 mm 154.08X85.92 mm 900 500 +70/-70 -20~+70 LVDS - TN
ATM0700L6L-T IGS PDF - 7 RFQ 800 X 480 166.1X101.2X12.9 mm 154.08X85.92 mm 900 500 +70/-70 -20~+70 LVDS - -
ATM0700L6N - PDF - 7 RFQ 800XR.G.B.X480 164.9X100.0 mm 154.08X85.92 mm 500 500 +70/-70 -20~+70 LVDS - TN
ATM0700L6N-CTN - PDF - 7 RFQ 800XR.G.B.X480 164.9X100.0 mm 154.08X85.92 mm 430 500 +70/-70 -20~+70 LVDS - TN
ATM0700L6N-T - PDF - 7 RFQ 800XR.G.B.X480 164.9X100.0 mm 154.08X85.92 mm 400 500 +70/-70 -20~+70 LVDS - TN
ATM0700L74 - PDF - 7 Stock Cart 50 800XR.G.B.X480 170.0X110.0 mm 152.4X91.44 mm 360 900 +85/-85 -20~+70 LVDS - IPS
ATM0700L76 - PDF - 7 RFQ 840 X 480 170.00X110.00X9.00mm 152.40X91.44mm 300 - +85/-85 -40~+85 LVDS - IPS
ATM0700M61K - PDF - 7 Stock Cart 45 1024 X 600 164.9X100.0X5.7mm 154.21X85.92mm 1100 800 +80/-80 -20~+70 MIPI - IPS
ATM0700M61K-CT - PDF - 7 Stock Cart 24 1024 X 600 176.42X115.7X8.3mm 154.21X85.92mm 1000 800 +80/-80 -20~+70 MIPI - IPS
ATM0700U3-CT - PDF - 7 RFQ 800 X 480 190.51X105.41X17.3mm 154.08X85.92mm 450 800 +80/-80 -20~+70 UART - -
ATM0700U3-T - PDF - 7 RFQ 800 X 480 190.51X105.41X17.3mm 154.08X85.92mm 450 800 +80/-80 -20~+70 UART - -
ATM0784L2N - PDF - 7.84 RFQ 400 X 1280 205.78X67.8X4.75mm 190.08X59.40mm 500 900 +80/-80 -20~+70 MIPI 2/4-L - IPS
ATM0784L2N-CT - PDF - 7.84 RFQ 400 X 1280 205.78X67.8X4.75mm 190.08X59.40mm 500 900 +80/-80 -20~+70 MIPI 2/4-L - IPS
ATM0784M2N - PDF - 7.84 RFQ 400XR.G.B.X1280 205.78X67.80 mm 190.08X59.4 mm 500 500 +80/-80 -20~+70 MIPI - IPS
ATM0800D9 IGS PDF ATM0800D9 PDF 8 RFQ 800 X 600 183.0X141.0X6.4 mm 162X121.5 mm 350 500 +70/-70 -20~+70 Digital RGB - -
ATM0800D9-T IGS PDF ATM0800D9-T PDF 8 RFQ 800 X 600 183.0X141.0X8.0 mm 162X121.5 mm 280 500 +70/-70 -20~+70 Digital RGB - -
ATM0800D9A - PDF - 8 RFQ 800XR.G.B.X600 183.0X141.0 mm 162.0X121.5 mm 350 500 +70/-70 -20~+70 RGB 24bit - TN
ATM0800D9A-T - PDF - 8 Stock Cart 50 800XR.G.B.X600 183.0X141.0 mm 162.0X121.5 mm 280 1000 +70/-70 -20~+70 RGB 24bit - TN
ATM0900D1 IGS PDF ATM0900D1 PDF 9 RFQ 800 X 480 211.1X126.5X 5.9 198.0X111.696 250 500 +70/-70 -20~+70 Digital RGB - -
ATM0900D6 - PDF - 9 RFQ 800XR.G.B.X480 210.7X126.5 mm 198.0X111.696 mm 300 500 +70/-70 -20~+70 RGB - TN
ATM0900D8 - PDF - 9 RFQ 800 X 480 211.1X128.4X4.4mm 198X111.969mm 300 - +70/-70 -20~+70 24bit RGB interface - IPS
ATM0900L1A IGS PDF ATM0900L1A PDF 9 RFQ 800 X 480 211.1X126.5X10.9mm 198.0X111.70mm 250 500 +70/-70 -20~+70 LVDS - -
ATM1010D11 - PDF - 10.1 RFQ 1024XR.G.B.X600 35.6X38.0 mm 222.72 x 125.28 mm 900 800 +85/-85 -10~+60 TTL - IPS
ATM1010L1 - PDF - 10.1 RFQ 1280XR.G.B.X800 229.46X149.1 mm 216.96X135.6 mm 350 800 +80/-80 -20~+70 LVDS - IPS
ATM1010L11 - PDF - 10.1 RFQ 1024XR.G.B.X600 235.0X143.0 mm 222.72X125.28 mm 900 800 +80/-80 -20~+70 LVDS - TN
ATM1010L1B - PDF - 10.1 RFQ 1280XR.G.B.X800 229.46X149.1 mm 216.96X135.6 mm 600 800 +80/-80 -20~+70 LVDS - IPS
ATM1010L1K - PDF - 10.1 RFQ 1280XR.G.B.X800 229.46X149.1 mm 216.96X135.6 mm 1000 800 +80/-80 -20~+70 LVDS - IPS
ATM1010L1K-CT - PDF - 10.1 RFQ 1280XR.G.B.X800 229.46X149.1 mm 216.96X135.6 mm 850 800 +80/-80 -20~+70 LVDS - IPS
ATM1010L1K-T - PDF - 10.1 RFQ 1280XR.G.B.X800 229.5X149.1 mm 216.96X135.6 mm 800 800 +80/-80 -20~+70 LVDS - IPS
ATM1010L35A - PDF - 10.1 Stock Cart 49 1280 X 800 229.8X149.0X6.0mm 216.9X135.6mm 1000 800 +85/-85 -20~+70 LVDS - IPS
ATM1010L35A-CT - PDF - 10.1 RFQ 1280 X 800 229.8X149.8X8.8mm 216.9X135.6mm 850 800 +85/-85 -20~+70 LVDS - IPS
ATM1010L35A-T - PDF - 10.1 RFQ 1280 X 800 229.8X149.0X7.9mm 216.9X135.6mm 800 800 +85/-85 -20~+70 LVDS - IPS
ATM1010M40 - PDF - 10.1 Stock Cart 49 1200XR.G.B.X1920 142.9X228.6 mm 135.36X216.576 mm 380 1000 +85/-85 -0~+50 MIPI - IPS
ATM1025L1-CT - PDF - 10.3 Stock Cart 1 1920 X 720 291.65X139.37X12.2mm 243.648X91.368mm 680 1000 +80/-80 -30~+85 LVDS - IPS
ATM1040L10A - PDF - 10.4 RFQ 1024 X 768 238.6X175.8X6.5mm 210.432X157.824mm 1200 1000 +80/-80 -30~+80 LVDS - IPS
ATM1210L9 - PDF - 12.1 Stock Cart 19 1024 X 768 260.50X204X6.95mm 245.76x184.32mm 1000 800 +80/-80 -20~+70 LVDS - IPS
ATM1210L9-CT - PDF - 12.1 RFQ 1024XR.G.B.X768 281.8X220.8 mm 245.76X184.32 mm 850 800 +85/-85 -20~+70 LVDS - IPS
ATM1330E1 - PDF - 13.3 RFQ 1920XR.G.B.X1080 300.56X188.25 mm 293.76X165.24 mm 300 800 +85/-85 -0~+50 eDP - IPS
ATMD128B1 - PDF - 1.28 RFQ 240XR.G.B.X240 35.6X38.0 mm 32.4 mm 400 1100 +80/-80 -20~+70 4 Wire SPI - IPS
ATMD210M1B - PDF - 2.1 RFQ 480 X 480 56.18X59.71X2.22mm 53.28X53.28 mm 600 1000 +85/-85 -20~+70 2 lane MIPI - IPS
ATMD276M1 - PDF - 2.76 RFQ 480 X 480 73.03X76.48X2.26mm 70.128X70.128 mm 300 1200 +85/-85 -20~+70 2 lane MIPI - IPS
ATMD500M1 - PDF - 5 RFQ 1080 X 1080 132.208X136.531X1.98mm 132.208X127.008 mm 350 1300 +80/-80 -20~+60 4 lane MIPI - IPS
© 1999-2025 AZ Displays, Inc. - A ZETTLER Group Company - By using this page you agree with our privacy and cookie policy.

Follow ZETTLER Group on Linkedin
