ATM0177B3A Digital TFT LCD Panel

Quicklinks:

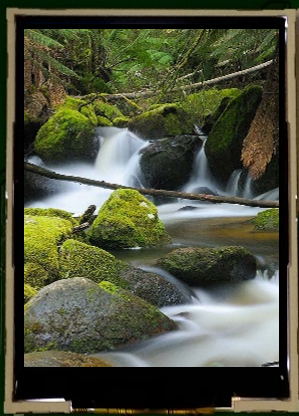

Product Picture:

ATM0177B3A Digital TFT LCD Panel Description

1.77" TFT LCD Display, 128 x 160, 450 nits, RGB, 15 pin

Module Specifications

Overall Module Size1.77"
Resolution128XR.G.B.X160
Brightness (Nits)450
Contrast500
Back LightLED
Viewing Angle+70/-70
+30/-45
Weight5.4 g
Operation Temperature (℃)-10~+60
Storage Temperature (℃)-20~+70
InterfaceSPI
Active Area28.032X35.04mm
Outline Dimension34.70X46.7X2.5mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
