AZ Displays announces high resolution, high temperature rated 10.25” IPS LCD with PCAP touch

AZ Displays continues to expand its product offering for the industrial and medical market. The newest IPS module, ATM1025L1-CT, is a unique wide aspect ratio IPS display that is designed to operate at -30 to 85 C. This LCD module has already received a lot of interest in the market for medical applications, time management systems, marine clusters, and several other designs. This 10.25″ display was designed with high performance in mind, with the following specifications:

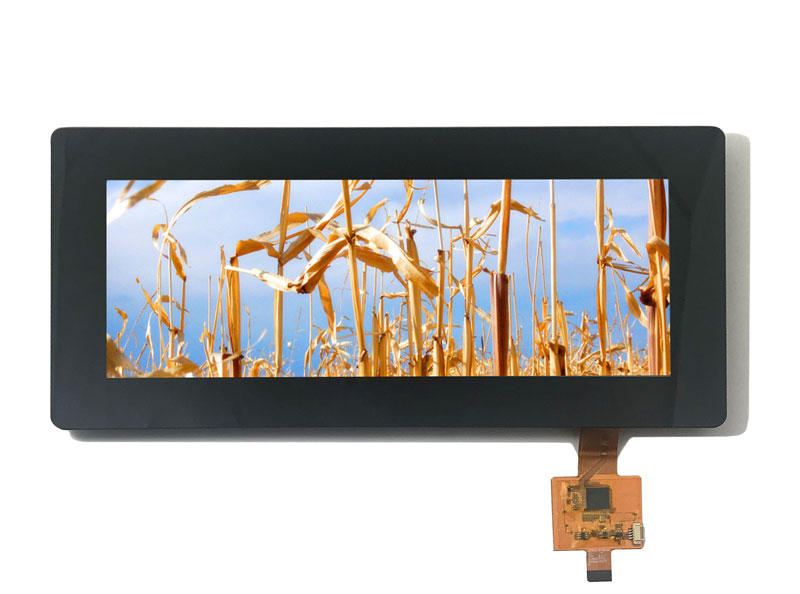

Resolution 1920 x 720 AZ Displays ATM1025L1-CT IPS LCD with PCAP touch
Brightness 680 (can be increased to 1K+)
Contrast 1000:1
Interface LVDS (data logic)
Viewing 80 degree all around (IPS)
Operating Temperature -30 C to 85 C
Touch PCAP

In order for the LCD module to operate at extended temperatures, AZ Displays used premium polarizers and liquid crystal fluid to initiate the active matrix into operating with minimal latency at the low temperature end (-30 C), and high tolerance to warping and burning of the polarizer at extreme heat. This quality, along with high temperature rated IC’s and an option for optical bonding between LCD and touch screen make this module highly suitable for a wide array of applications and environments.

For more information on demos or samples, please contact us.
