Custom Glass LCD with TN, STN, and FSTN Technology

AZ DISPLAYS CUSTOM GLASS LCD BTN
AZ DISPLAYS CUSTOM GLASS LCD BTN
  • Lowest Unit Cost – Custom glass LCD solutions are typically less expensive than monochrome and TFT displays.
  • Many Size Options – Flexible design requirements allow for a wide range of size options for custom glass LCD. Designs can be as small as 1.5″ and as large as 10″.
  • Very Fast Tooling Process – Concept to Production as fast as 12 weeks – Tooled samples delivered in as little as 4 weeks. Once customer provides drawing to sales@azdisplays.com , we can have a proposed design within in 1-2 days.
    1. Proposal Design
    2. Tooling
    3. Production Orders
    4. Total Time
    • ~1 – 2 Days
    • ~4 – 5 Weeks
    • ~8 – 10 Weeks
    • ~12 – 15 Weeks

BTN Technology

  • High Contrast
  • No Ghosting
  • No light is transmitted through “Off” segments.
  • Excellent Contrast Ratio 600:1

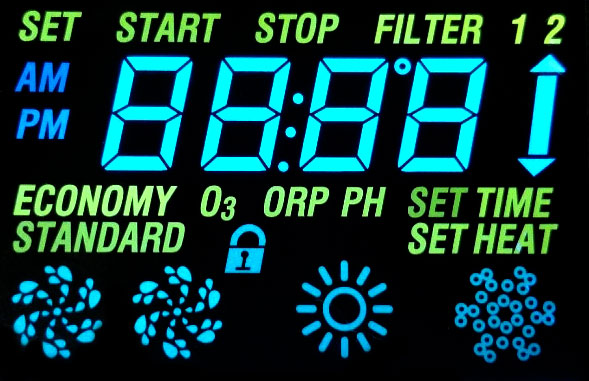

  • Multi-color display possible with Silk printing.
AZ DISPLAYS CUSTOM GLASS LCD BTN TECH

PMVA Technology(Vertical Alignment)

  • True Black Background
  • Ultra High Contrast Ratio 1000:1
  • Ultra Wide Viewing Cone – 85 degree all around
  • Background color doesn’t degrade between -30 to 80 ℃
AZ DISPLAYS CUSTOM GLASS LCD PMVA TECH

Options

Interface Options – All Custom glass LCD displays have a standard option to be designed with either Pins or Elastomeric Strips.

AZ DISPLAYS CUSTOM GLASS LCD PINS
AZ DISPLAYS CUSTOM GLASS LCD ZEBRA STRIP ELASTOMERIC

Multiple Backlight Color Options – Choose any color for the backlight/ fluid combination of the custom glass LCD displays.

  • All backlights come with a diffuser film to evenly disperse the light from the LED’s to eliminate “hot spots”
AZ DISPLAYS CUSTOM GLASS LCD BACKLIGHT COLOR OPTIONS

Design Guidelines

Custom Glass LCD InfoMinimumMaximum
SizeNo less than 1.5″No more than 10″
Width of GlassNo less than 15mmNo more than 160mm
Large Glass HeightNo less than 15mmNo more than 160mm
Small Glass HeightNo less than 14mmNo more than 150mm
Viewing AreaNo less than 1.4″No more than 9.8″
First ContactPIN and Zebra
Glass Thickness1.7mm(seldom use), 2.0mm(common), 2.8mm(common)
Contact Pitch(Metal PIN)Pitch=1.5mm, Pitch=1.8mm, Pitch=2.0mm, Pitch=2.54mm
Contact Pitch(Zebra)Pitch: more than 0.6mmNo upper limit

If you don’t have a drawing already, you can download the Design Sheet and return to sales@azdisplays.com or contact an engineer for technical support at 949.360.5830

Applications

  • Portable Test Equipment
  • Measuring Devices
  • Diagnostics
  • Automotive Displays
  • Medical Equipment Meters
  • Marine Equipment
  • Telecom Products
