Monochrome TFTs

AZ Display’s new Monochrome TFT Module Solution ATM2412B (8 Bit Parallel) and ATM2412BS (SPI interface) series offer companies previously using a monochrome LCD (it fits most 240 x 128 pixel Monochrome Graphic LCD Modules) a way to update to the bold look of a TFT module without reprogramming the complete software and changing major components of the assembly.

ATM2412B and ATM2412BS interface like a traditional monochrome Graphic LCD Module, but perform like a TFT module (mono color). Content is brought to the display using the RA6963 controller.

Performance comparison pictures below show the advantages in viewing angle, contract ratio, and easy adjusting of background color on the fly.

	Interface
SPEC SHEET:	8 Bit Parallel	ATM2412B (web link to more information)	ATM2412B (PDF spec)		Request Quotation
SPEC SHEET:	SPI	ATM2412BS (web link to more information)	ATM2412BS (PDF spec)		Request Quotation



Direct Cross	Cross available by revising PCB design:		Display Option Module P/N VDD FONT COLOR BG COLOR RFQ Buy sample 1 ATM2412B-NLW-BFW 5V White Blue RFQ Buy sample 2 ATM2412B-FLW-FFW 5V Black White RFQ Buy sample 3 ATM2412B-NLW-FFW 5V White Black RFQ Buy sample 4 ATM2412B-FL-YFW 5V Black Yellow-Green RFQ Buy sample 5 ATM2412B-NLW-BFW-M 3.3V White Blue RFQ Buy sample 6 ATM2412B-FLW-FFW-M 3.3V Black White RFQ Buy sample 7 ATM2412B-NLW-FFW-M 3.3V White Black RFQ Buy sample 8 ATM2412B-FL-YFW-M 3.3V Black Yellow-Green RFQ Buy sample 9 ATM2412B-FLW-XFW 5V Supports display option 1-4 (switch on PCB board) RFQ Buy sample 10 ATM2412B-FLW-XFW-M 3.3V Supports display option 1-4 (switch on PCB board) RFQ Buy sample 11 Customized Many customized options are available. Please contact us. RFQ n/a 21 ATM2412BS-NLW-BFW 5V White Blue RFQ Buy sample 22 ATM2412BS-FLW-FFW 5V Black White RFQ Buy sample 23 ATM2412BS-NLW-FFW 5V White Black RFQ Buy sample 24 ATM2412BS-FL-YFW 5V Black Yellow-Green RFQ Buy sample 25 ATM2412BS-NLW-BFW-M 3.3V White Blue RFQ Buy sample 26 ATM2412BS-FLW-FFW-M 3.3V Black White RFQ Buy sample 27 ATM2412BS-NLW-FFW-M 3.3V White Black RFQ Buy sample 28 ATM2412BS-FL-YFW-M 3.3V Black Yellow-Green RFQ Buy sample 29 ATM2412BS-FLW-XFW 5V Supports display option 21-4 (switch on PCB board) RFQ Buy sample 30 ATM2412BS-FLW-XFW-M 3.3V Supports display option 21-4 (switch on PCB board) RFQ Buy sample 31 Customized Many customized options are available. Please contact us. RFQ n/a
AZ Displays: AGM2412A seriesTopway: LM240128TCWTopway: LM240128TFWTopway: LM240128TBY	Winstar: WG240128EWG240128BVaritronix: MGLS240128TAZMGLS240128TAMGLS240128TTianma: TM240128ACCWVBYD Tianma: TM240128ABCWVBYD Tianma: TM240128AGFWVBYD Fordata: FDCG240128B

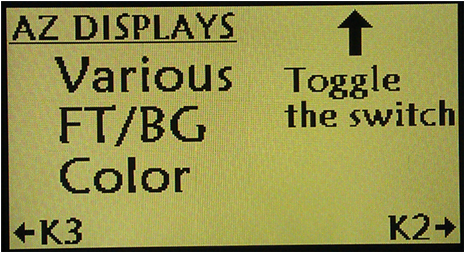

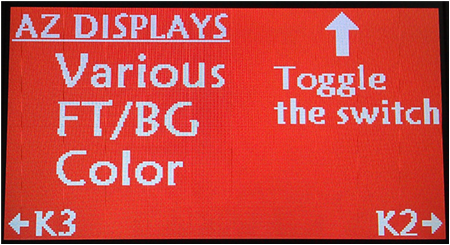

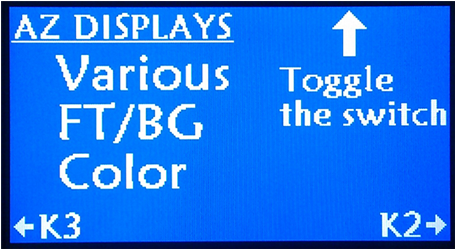

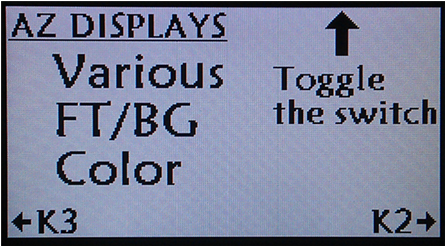

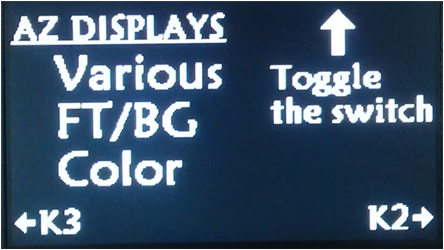

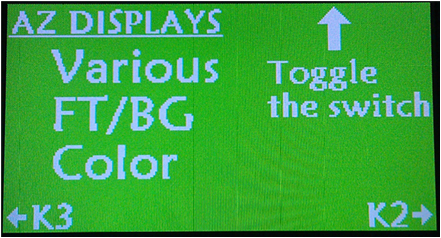

Many Color choices (selection shown):



Viewing Angle demonstration

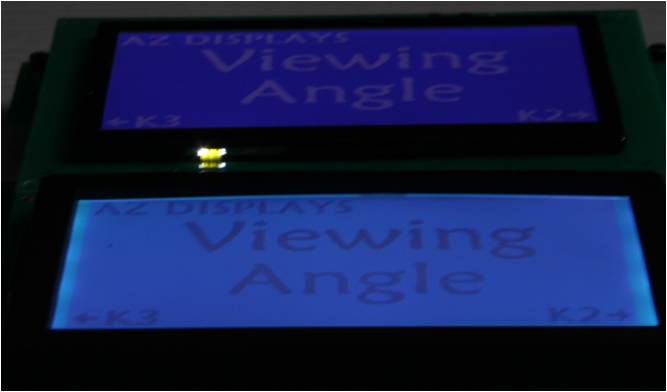

Upper display is TFT, lower display is STN (bottom view angle)	Lower display is TFT, upper display is STN (bottom top angle)

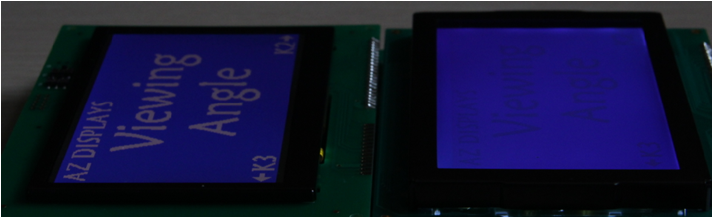

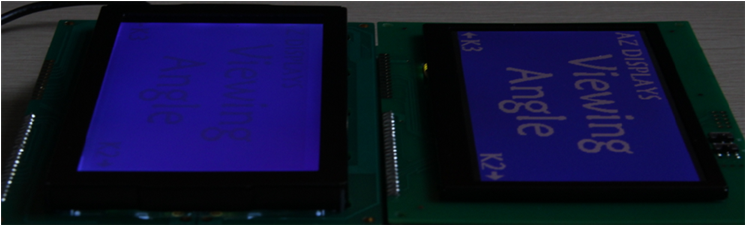

Left display is TFT, right display is STN (view from left side)	Right display is TFT, left display is STN (view from right side)

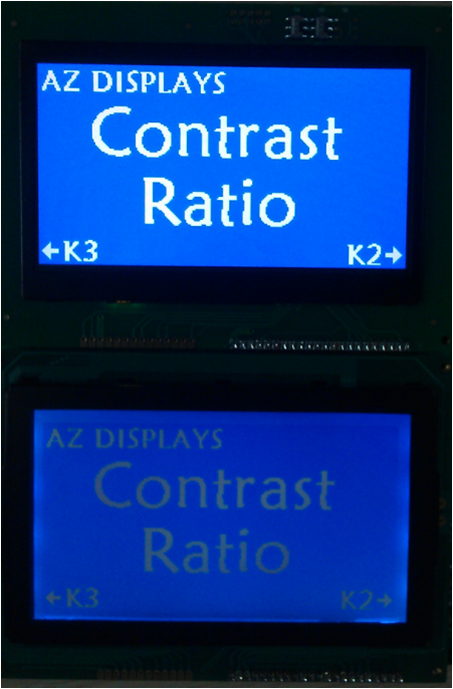

Contrast Ratio   (TFT on the top,
STN on the bottom)
