ATM0900L1A Digital TFT LCD Panel

Quicklinks:

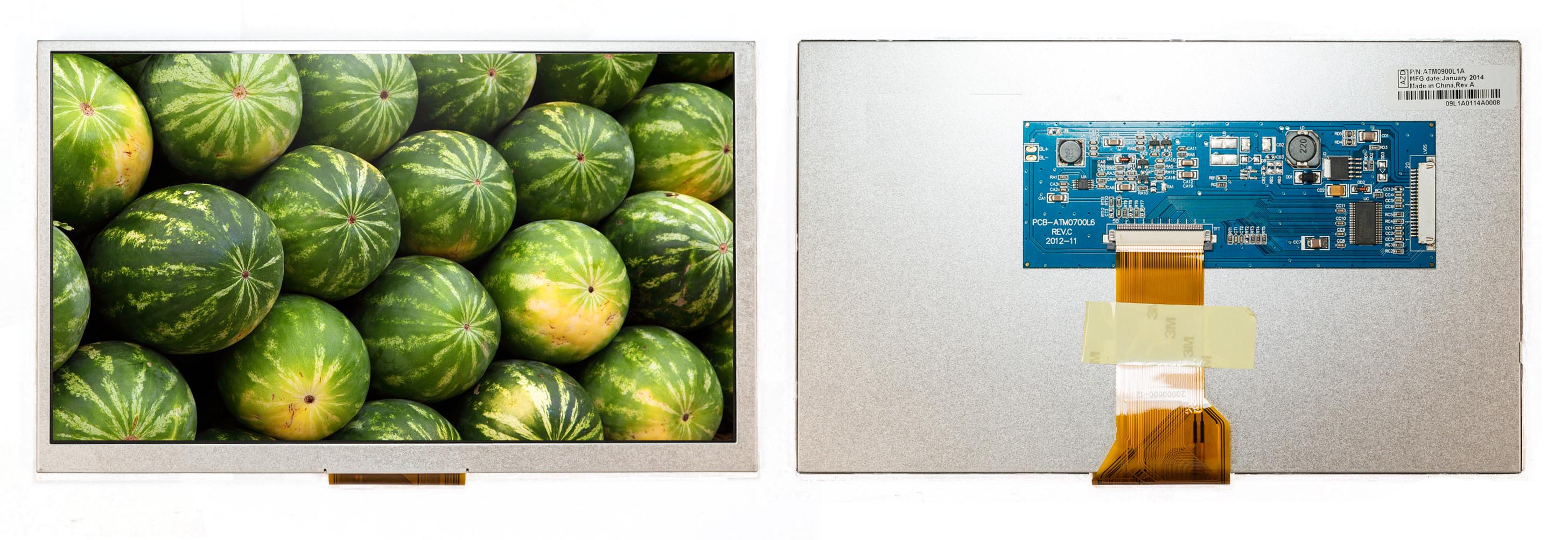

Product Picture:

ATM0900L1A Digital TFT LCD Panel Description

9" TFT LCD Display, 800 x 480, 250 nits, LVDS, 20 pin

Module Specifications

Overall Module Size9"
Resolution800XR.G.B.X480
Brightness (Nits)250
Contrast500
Back LightLED
Viewing Angle+70/-70
+50/-70
Weight270 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceLVDS
Active Area198.0X111.70mm
Outline Dimension211.1X126.5X10.9mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
