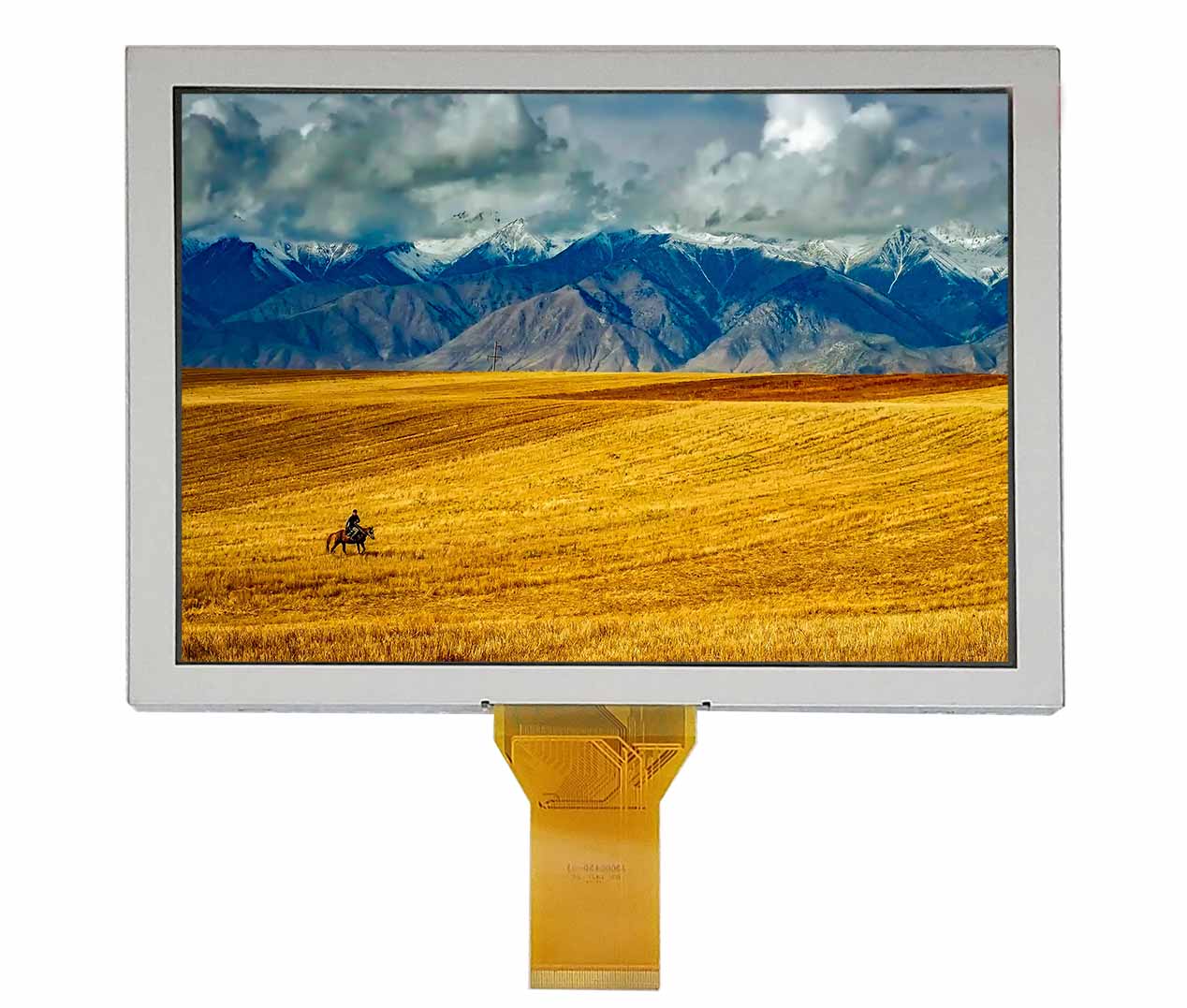

ATM0800D9 Digital TFT LCD Panel
Quicklinks:
ATM0800D9 Digital TFT LCD Panel Description
8" TFT LCD Display, 800 x 600, 350 nits, RGB, 50 pinModule Specifications
Overall Module Size | 8" |
Resolution | 800XR.G.B.X600 |
Brightness (Nits) | 350 |
Contrast | 500 |
Power Consumption | 0.356W |
Back Light | LED |
Viewing Angle | +70/-70 +50/-70 |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | Digital RGB |
Active Area | 162X121.5 mm |
Outline Dimension | 183.0X141.0X6.4 mm |
Viewing Direction | 12 O'clock |
Bonding Type | COG |
Pixel Configuration | Stripe |
