ATM0700D38B-T Digital TFT LCD Panel

Quicklinks:

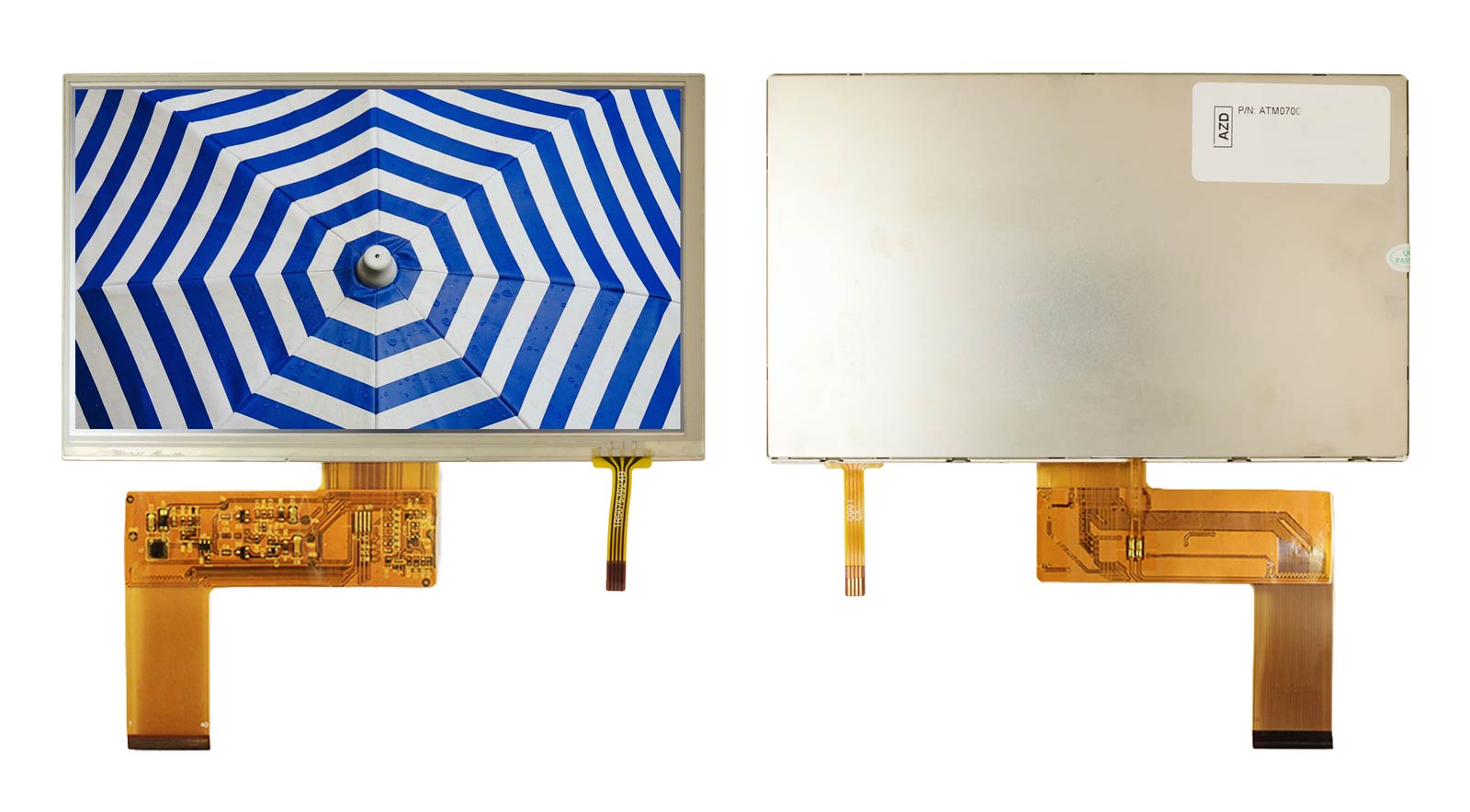

Product Picture:

ATM0700D38B-T Digital TFT LCD Panel Description

7" TFT LCD Display, 800 x 480, 590 nits, RGB, 40 pin, w/ Resistive TP

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)590
Contrast500
Back LightLED
Viewing Angle+70/-70
+60/-50
Weight150g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92mm
Viewing Area
Outline Dimension164.8X100.0X4.9 mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
