ATM0350D19A Digital TFT LCD Panel

Quicklinks:

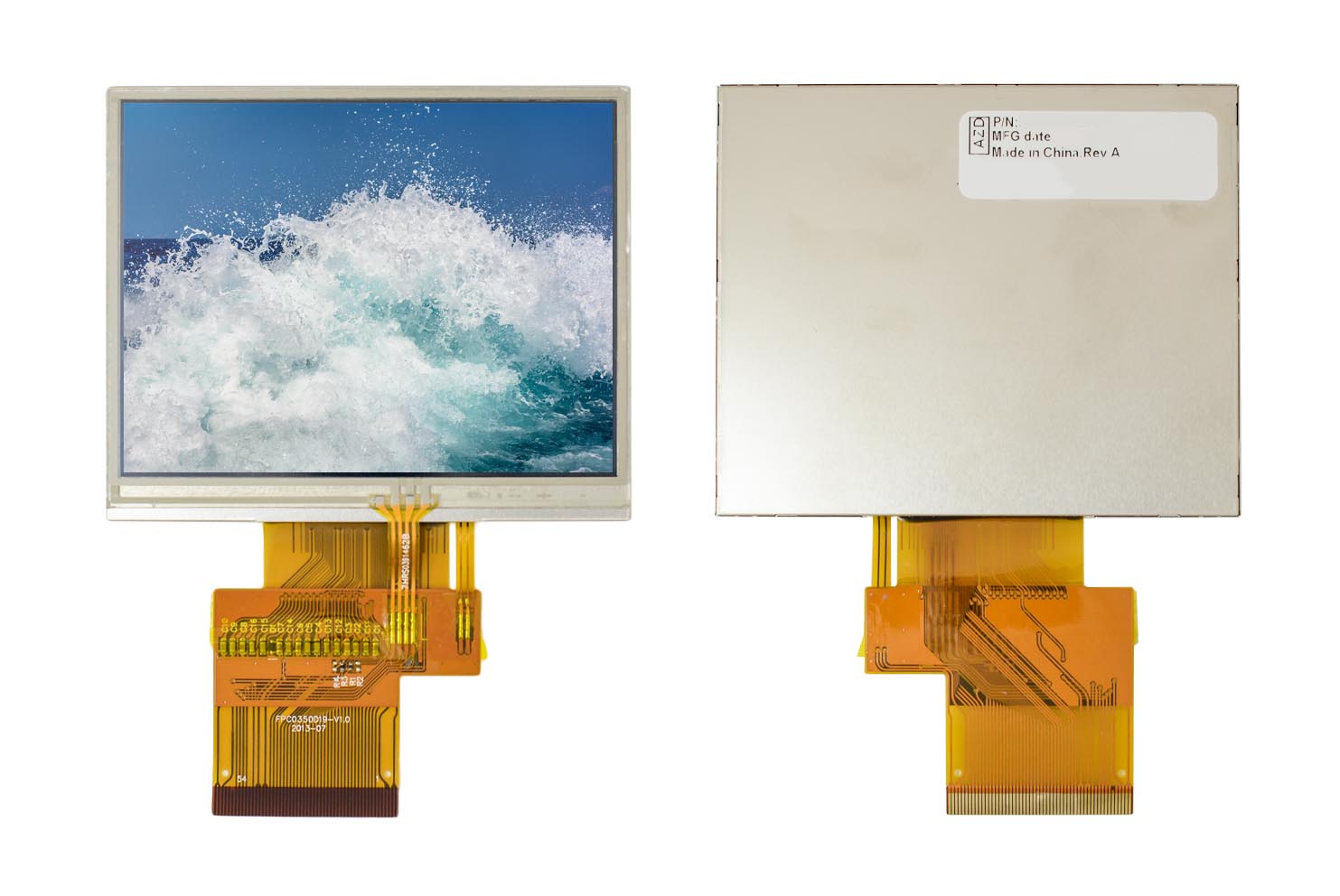

Product Picture:

ATM0350D19A Digital TFT LCD Panel Description

3.5" TFT LCD Display, 320 x 240, 500 nits, RGB, 54 pin

Module Specifications

Overall Module Size3.5"
Resolution320XR.G.B.X240
Brightness (Nits)500
Contrast450
Power Consumption.434
Back LightLED
Viewing Angle+80/-80
+80/-80
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area70.08X52.56mm
Outline Dimension77.0X64.0X3.3mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
