ATM0280B44B Digital TFT LCD Panel

Quicklinks:

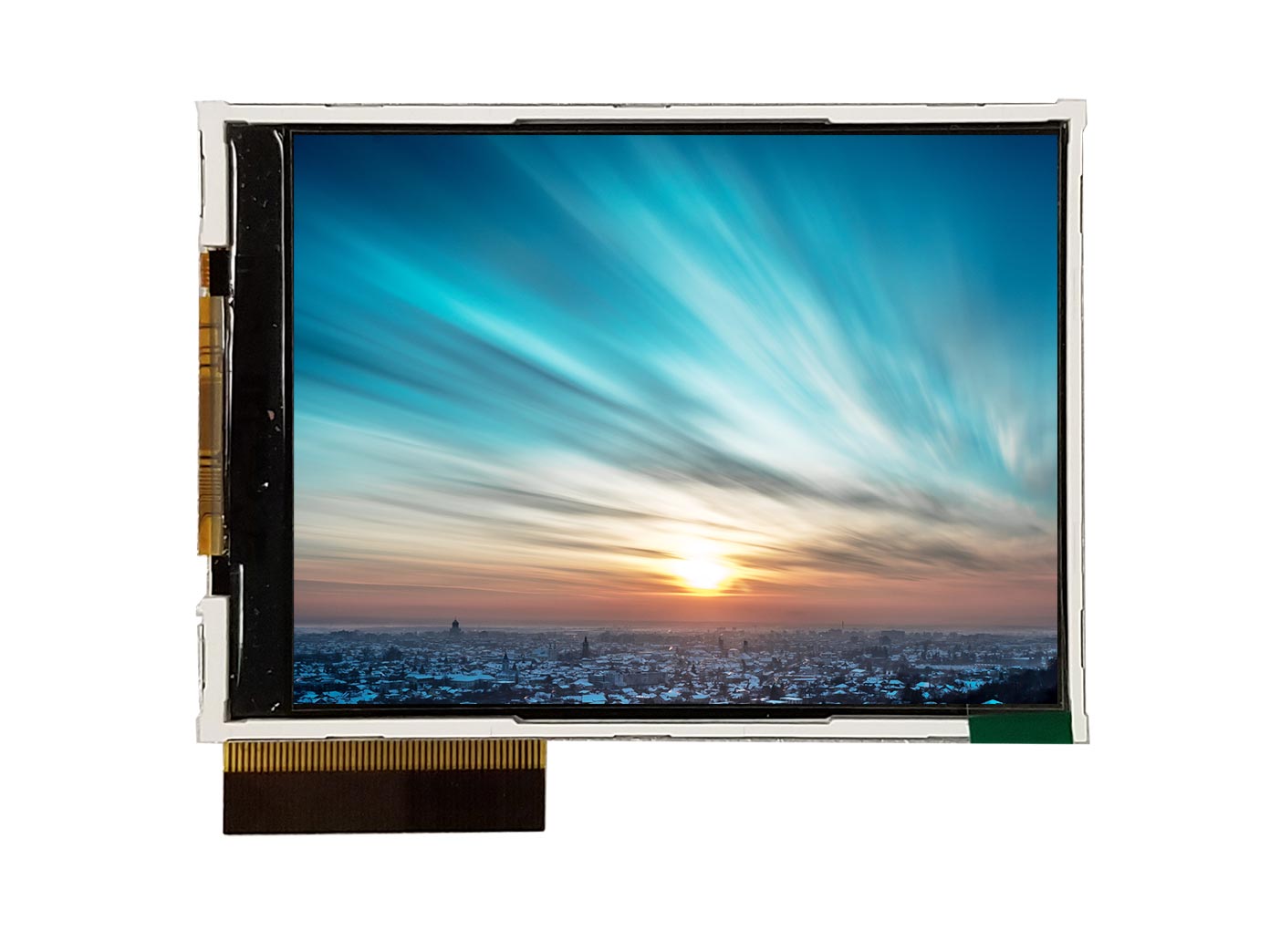

Product Picture:

ATM0280B44B Digital TFT LCD Panel Description

2.8" TFT LCD Display, 240 x 320, 240 nits, RGB, 37 pin

Module Specifications

Overall Module Size2.8"
Resolution240XR.G.B.X320
Brightness (Nits)240
Contrast480
Power Consumption0.278
Back LightLED
Viewing Angle+45/-45
+50/-20
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceMPU
Active Area43.20X57.60 mm
Outline Dimension50.00X69.20X2.7 mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
