ATM0177B5 Digital TFT LCD Panel

Quicklinks:

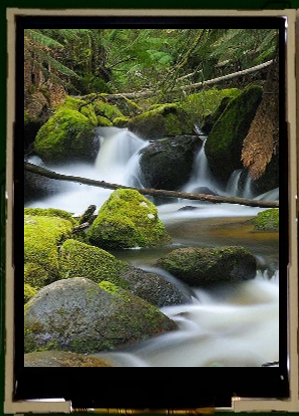

Product Picture:

ATM0177B5 Digital TFT LCD Panel Description

1.77" TFT LCD Display, 128 x 160, 240 nits, RGB, 33 pin

Module Specifications

Overall Module Size1.77"
Resolution128XR.G.B.X160
Brightness (Nits)240
Contrast500
Back LightLED
Viewing Angle+45/-45
+45/-20
Weight5.4 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceMCU
Active Area28.032X35.04mm
Outline Dimension34.70X46.7X2.5mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
