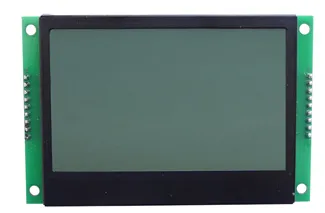

Graphic Module: AQM2416D-FLW-FBE-T
Datasheet: AQM2416D-FLW-FBE-T
View Part Drawing
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Series | AQM2416D |
| Format | 240 x 160 |
| Viewing Area (mm) | 78.5 (W) x 47.5 mm (H) |
| Supply Voltage | 3.3V |
| Outline Dimensions (mm) | 98.7 (W) x 64.2 (H) x 9.8 mm (D) |
| Polarizer Type | Transflective Positive |
| Backlight Type | LED |
| Backlight Color | White |
| Fluid Type | FSTN |
| Dot Size | 0.270 x 0.255 mm |
| Dot Pitch | 0.290 x 0.275 mm |
| Duty | 1/160 |
Nomenclature Diagram
