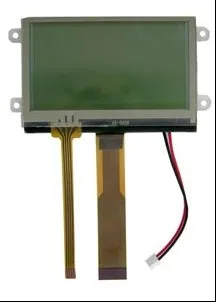

Graphic Module: AQM1264C-FL-YBX-T

Resources

AQM1264C

Product Specifics
Series	AQM1264C
Format	128 x 64
Viewing Area (mm)	70.7 x 38.8
Supply Voltage	3.3V
Outline Dimensions (mm)	93.7X52.6X6.8mm
Polarizer Type	Transflective Positive
Backlight Type	LED
Backlight Color	Yellow/Green
Fluid Type	Yellow Mode STN
Dot Size	0.50 x 0.50 mm
Dot Pitch	0.52 x 0.52 mm
Duty	1/65

Nomenclature Diagram

Character Module Nomenclature
