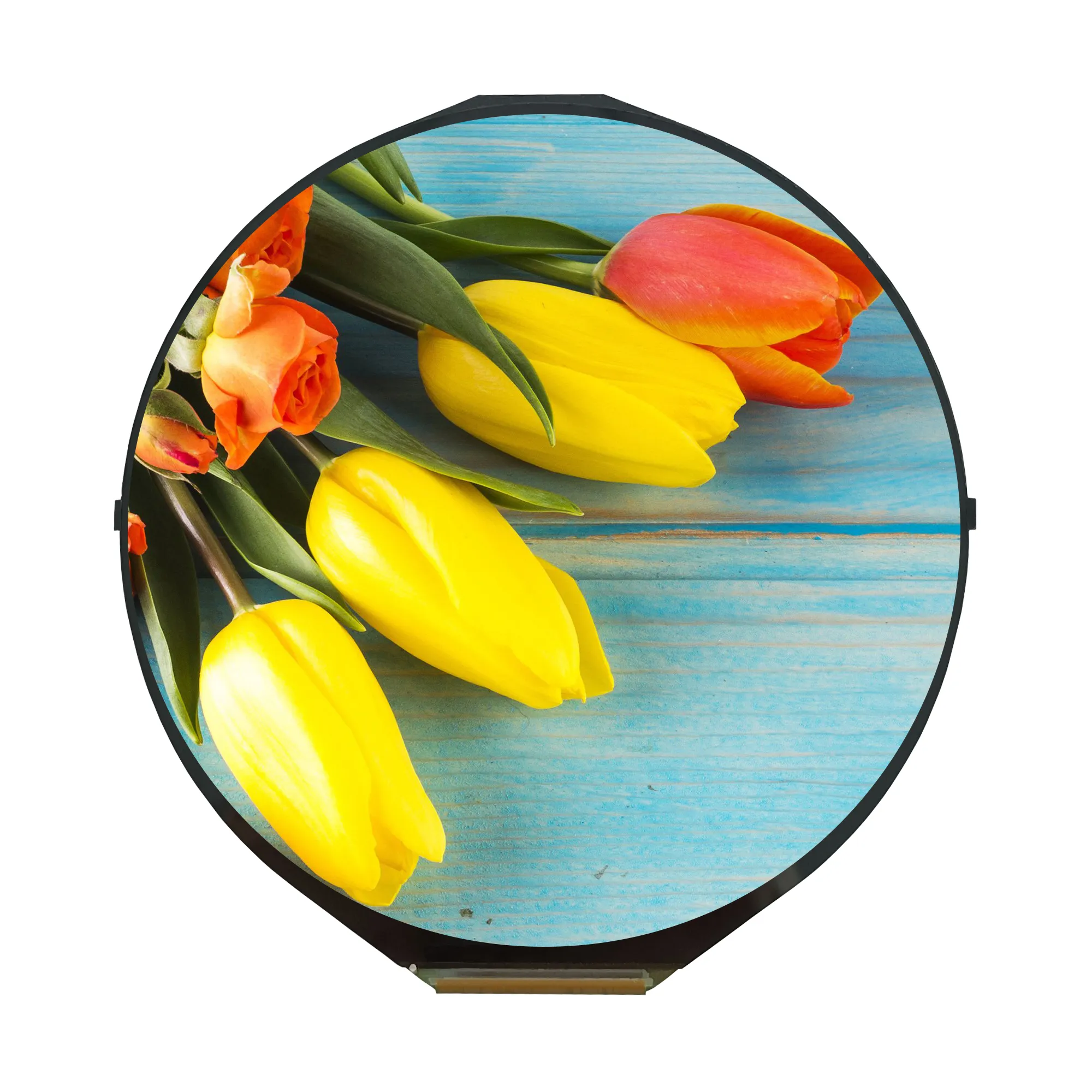

ATMD500M1 Digital TFT LCD Panels

Resources

ATMD500M1

Product Specifics
Overall Module Size	5
Resolution	1080 X 1080
Brightness (Nits)	350
Contrast	1300
Backlight	LED
Viewing Angle	+80/-80
Weight	71.1
Operation Temperature (℃)	-20~+60
Storage Temperature (℃)	-30~+80
Interface	4 lane MIPI
Active Area	132.208X127.008 mm
Outline Dimension	132.208X136.531X1.98mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
