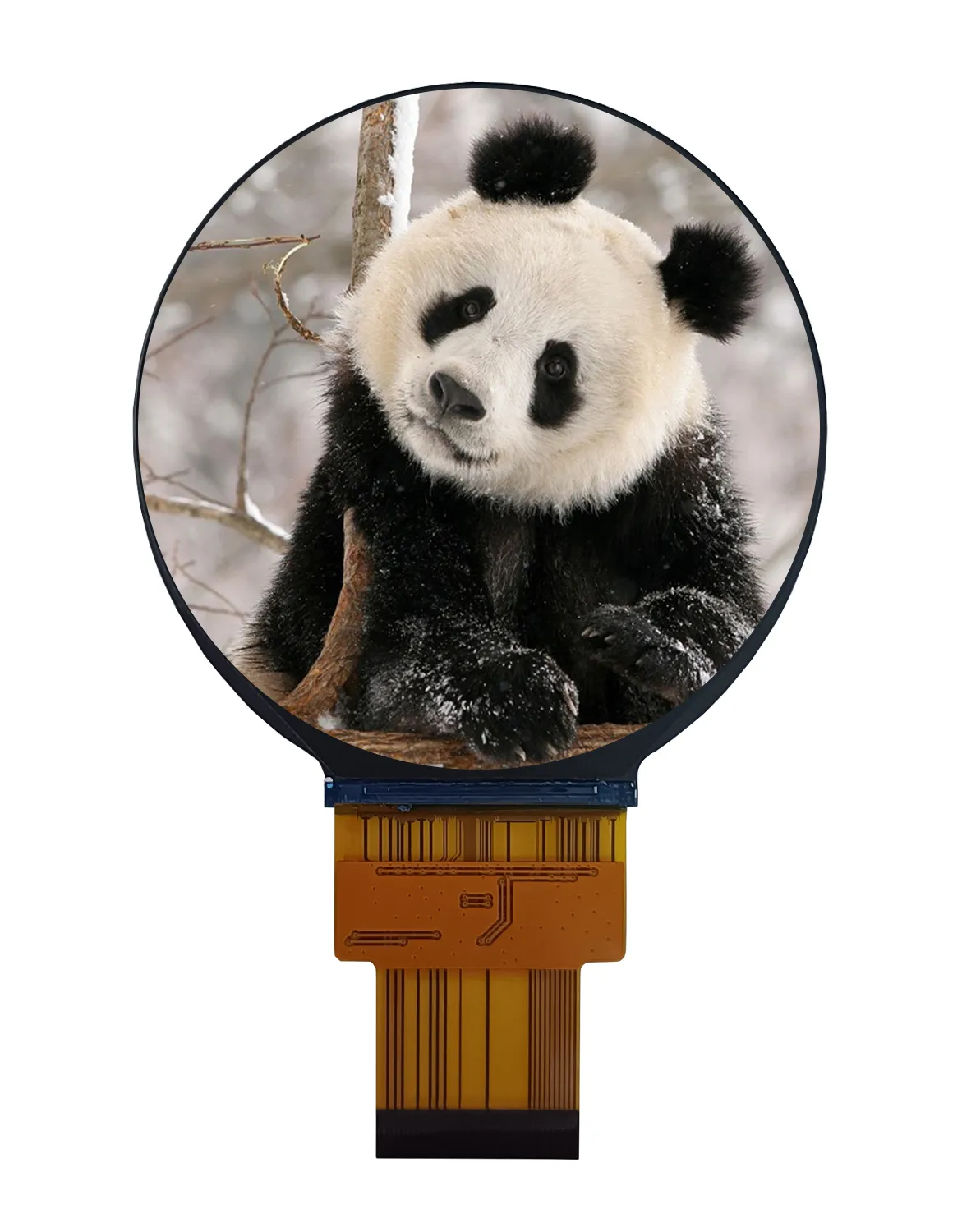

ATMD210M1B Digital TFT LCD Panels

Resources

ATMD210M1B

Product Specifics
Overall Module Size	2.1
Resolution	480 X 480
Brightness (Nits)	600
Contrast	1000
Backlight	LED
Viewing Angle	+85/-85
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	2 lane MIPI
Active Area	53.28X53.28 mm
Outline Dimension	56.18X59.71X2.22mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
