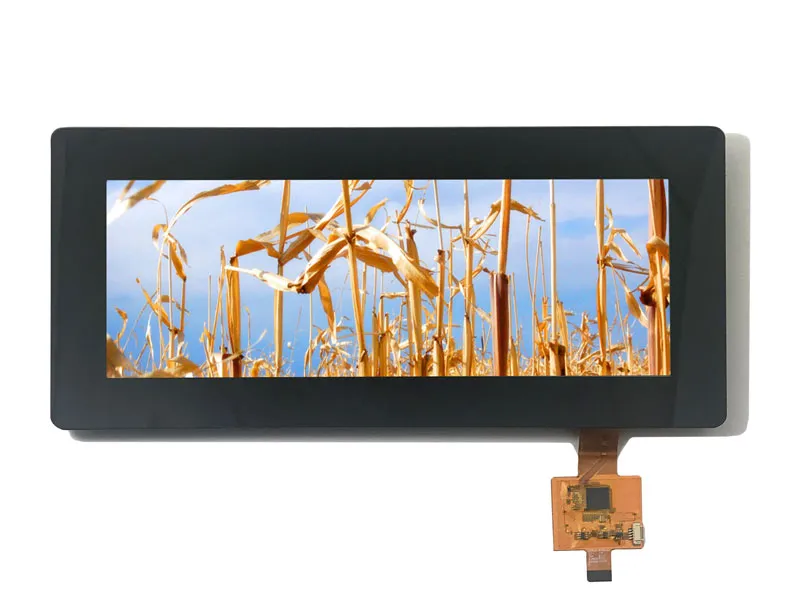

ATM1025L1-CT Digital TFT LCD Panels

Resources

ATM1025L1-CT

Product Specifics
Overall Module Size	10.3
Resolution	1920 X 720
Brightness (Nits)	680
Contrast	1000
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-30~+85
Storage Temperature (℃)	-30~+85
Interface	LVDS
Active Area	243.648X91.368mm
Outline Dimension	291.65X139.37X12.2mm
Viewing Direction	Free
Bonding Type
Pixel Configuration	RGB-stripe
