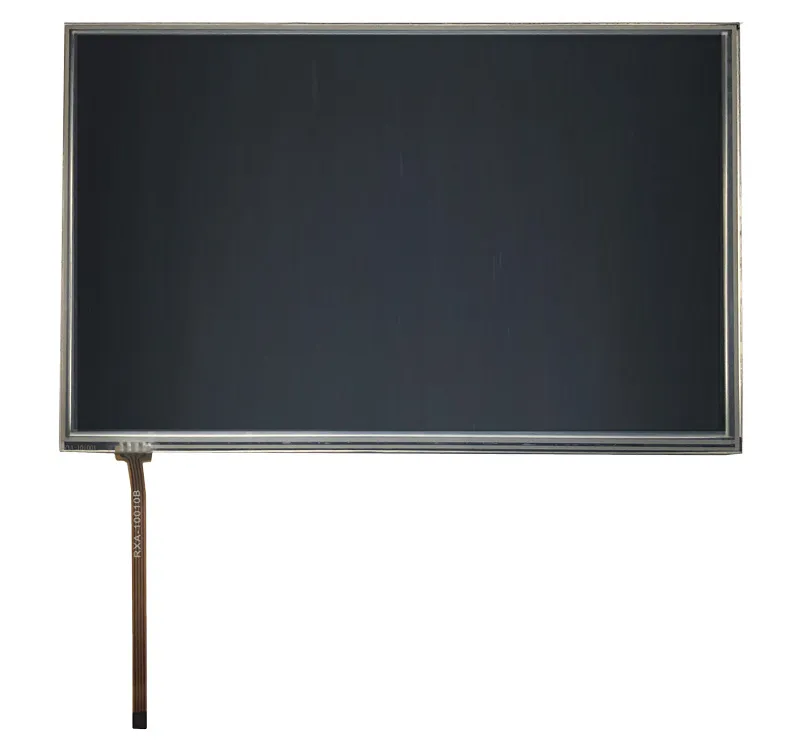

ATM1010L35A-T Digital TFT LCD Panels

Resources

ATM1010L35A-T

Product Specifics
Overall Module Size	10.1
Resolution	1280 X 800
Brightness (Nits)	800
Contrast	800
Backlight	LED
Viewing Angle	+85/-85 +85/-85
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	LVDS
Active Area	216.9X135.6mm
Outline Dimension	229.8X149.0X7.9mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
