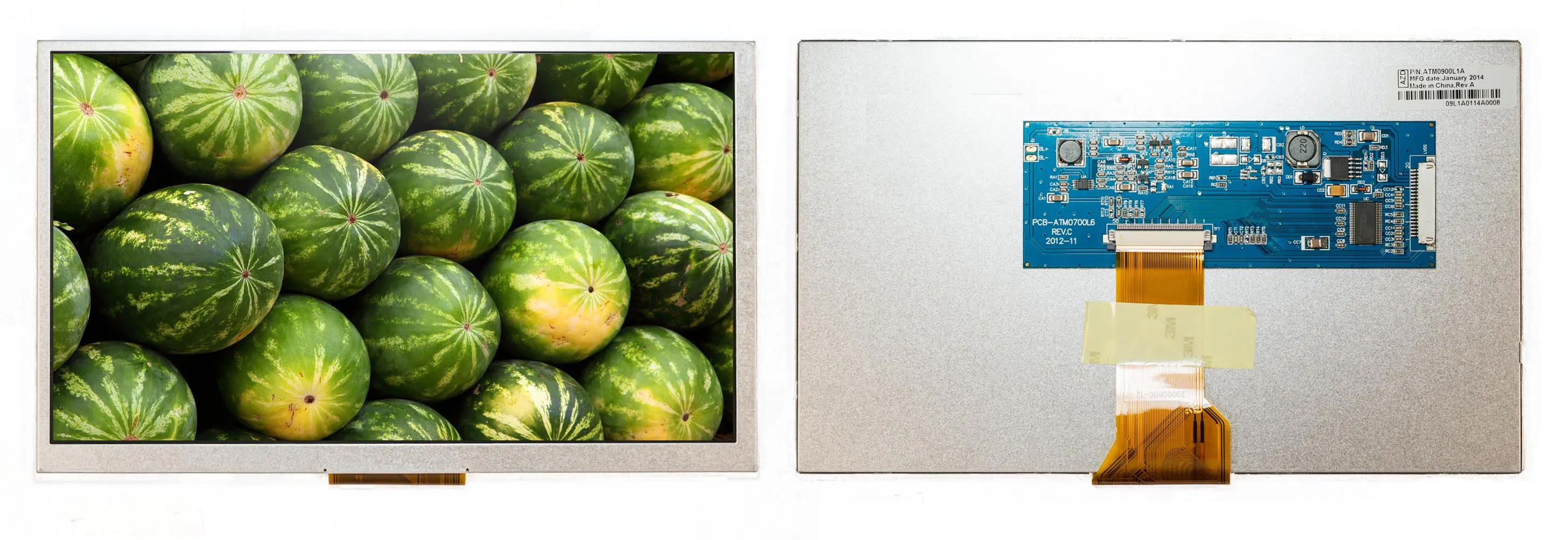

ATM0900L1A Digital TFT LCD Panels

Resources

ATM0900L1A

Product Specifics
Overall Module Size	9
Resolution	800 X 480
Brightness (Nits)	250
Contrast	500
Backlight	LED
Viewing Angle	+70/-70 +50/-70
Weight	270 g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	LVDS
Active Area	198.0X111.70mm
Outline Dimension	211.1X126.5X10.9mm
Viewing Direction	6 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
