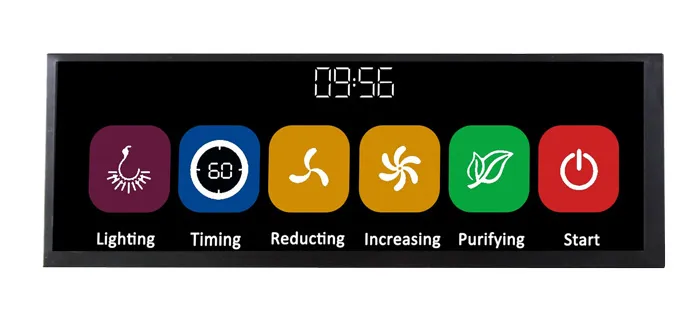

ATM0784L2N Digital TFT LCD Panels

Resources

ATM0784L2N

Product Specifics
Overall Module Size	7.84
Resolution	400 X 1280
Brightness (Nits)	500
Contrast	900
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+70
Interface	MIPI 2/4-L
Active Area	190.08X59.40mm
Outline Dimension	205.78X67.8X4.75mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
