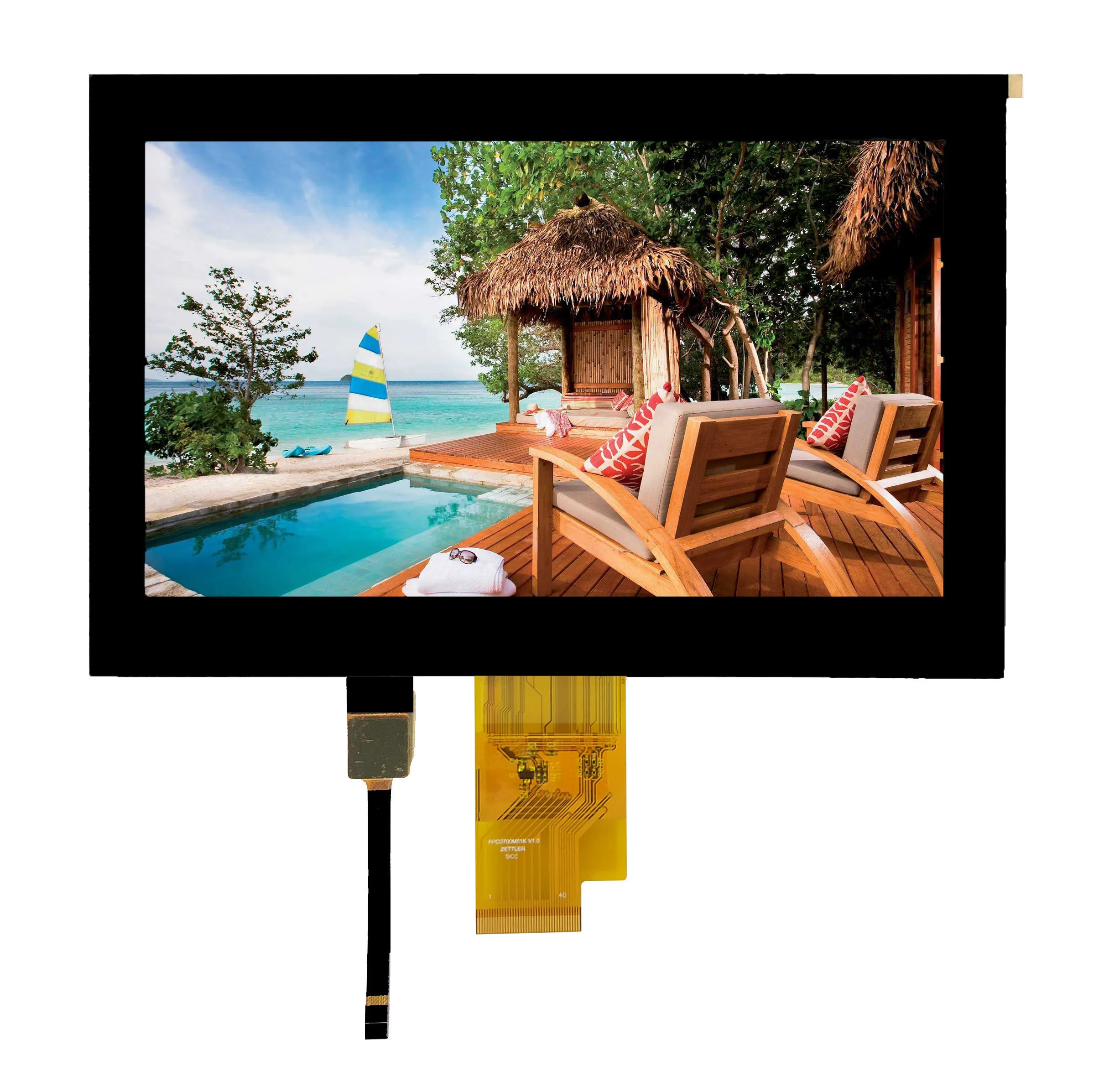

ATM0700M61K-CT Digital TFT LCD Panels

Resources

ATM0700M61K-CT

Product Specifics
Overall Module Size	7
Resolution	1024 X 600
Brightness (Nits)	1000
Contrast	800
Backlight	RGB
Viewing Angle	+80/-80 +80/-80
Weight	222g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	MIPI
Active Area	154.21X85.92mm
Outline Dimension	176.42X115.7X8.3mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
