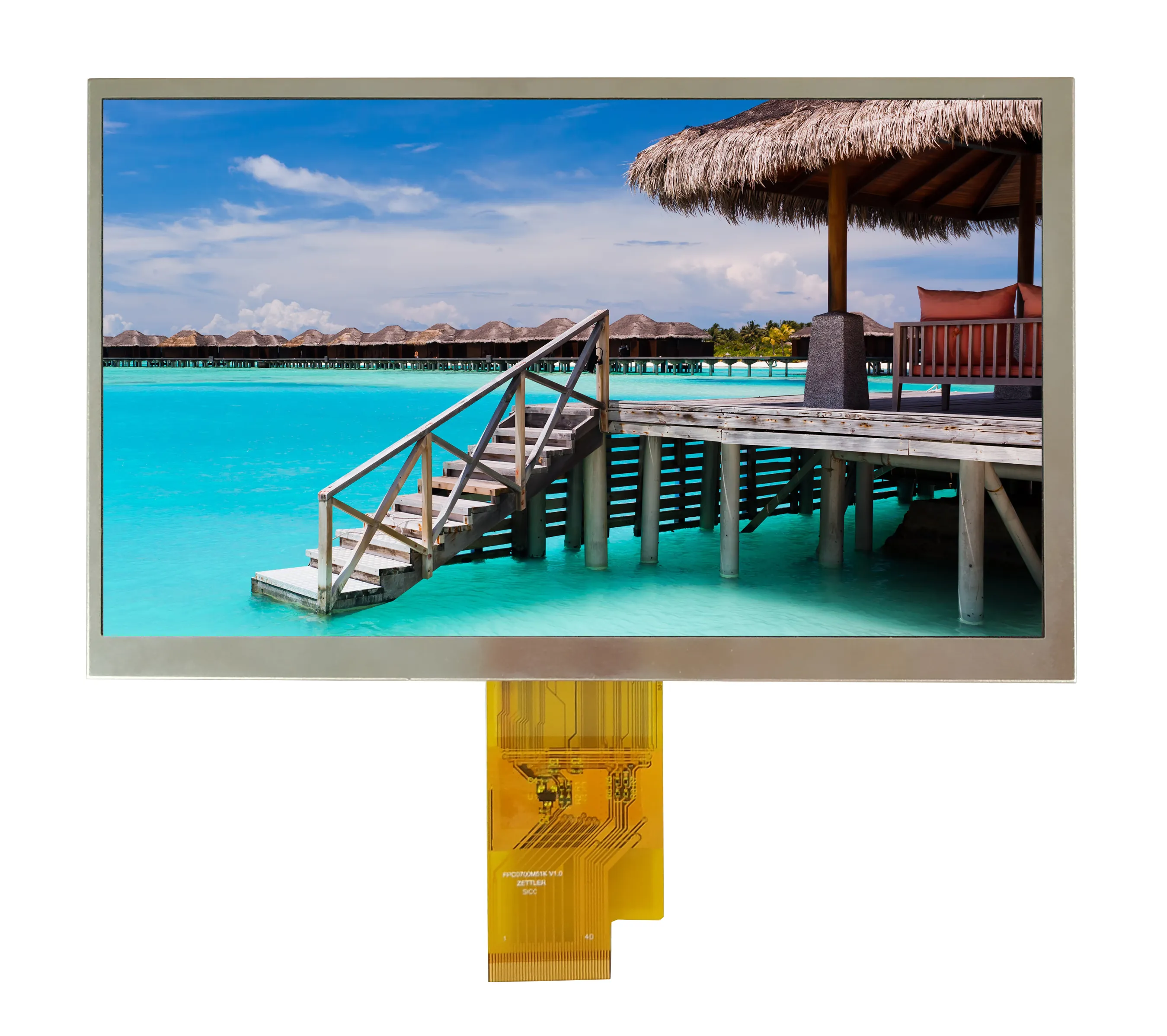

ATM0700M61K Digital TFT LCD Panels

Resources

ATM0700M61K

Product Specifics
Overall Module Size	7
Resolution	1024 X 600
Brightness (Nits)	1100
Contrast	800
Backlight	RGB
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	MIPI
Active Area	154.21X85.92mm
Outline Dimension	164.9X100.0X5.7mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
