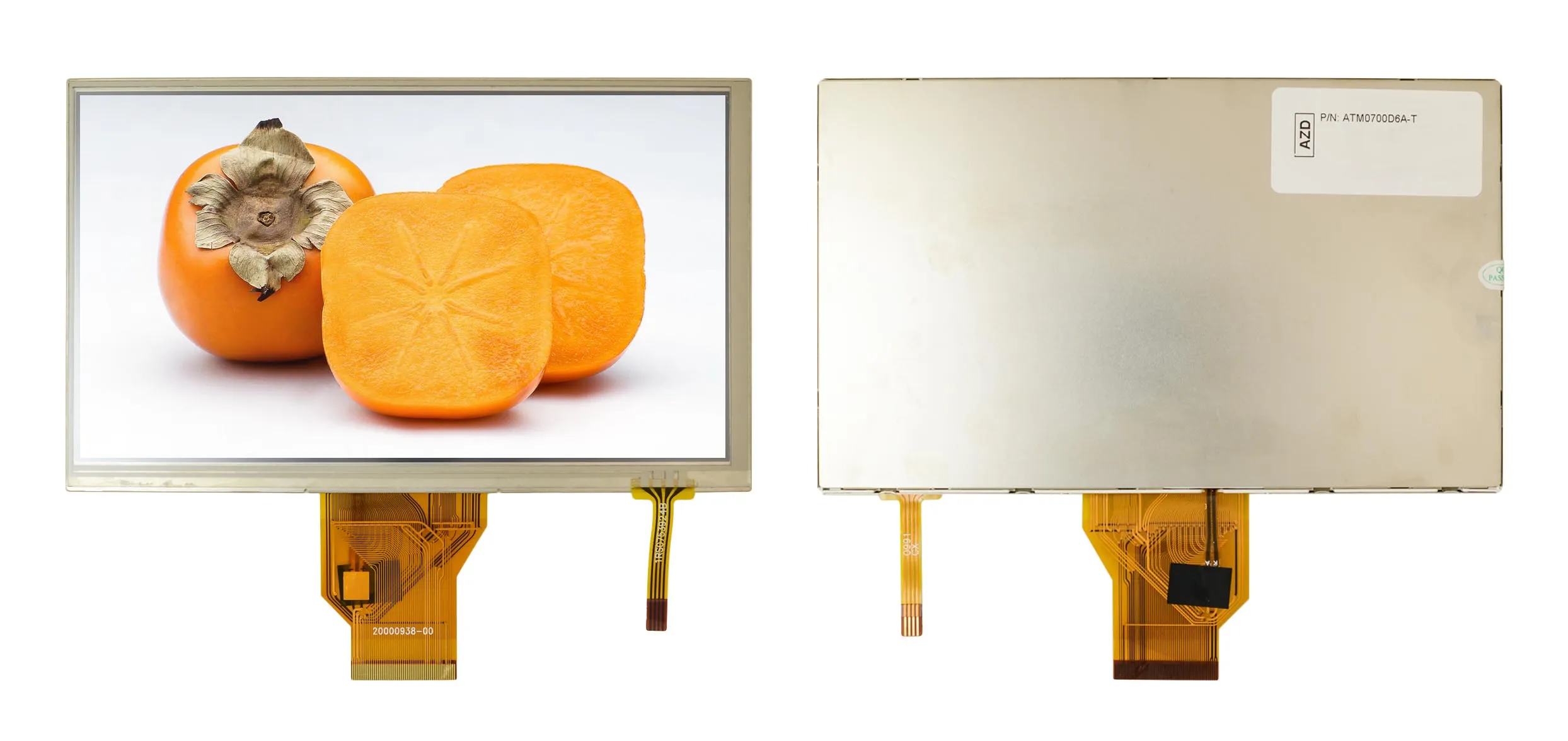

ATM0700L61-T Digital TFT LCD Panels

Resources

ATM0700L61-T

Product Specifics
Overall Module Size	7
Resolution	1024 X 600
Brightness (Nits)	450
Contrast	800
Backlight	SELB
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+70
Interface	SELB
Active Area	154.21X85.92mm
Outline Dimension	164.9X100.0X4.9mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
