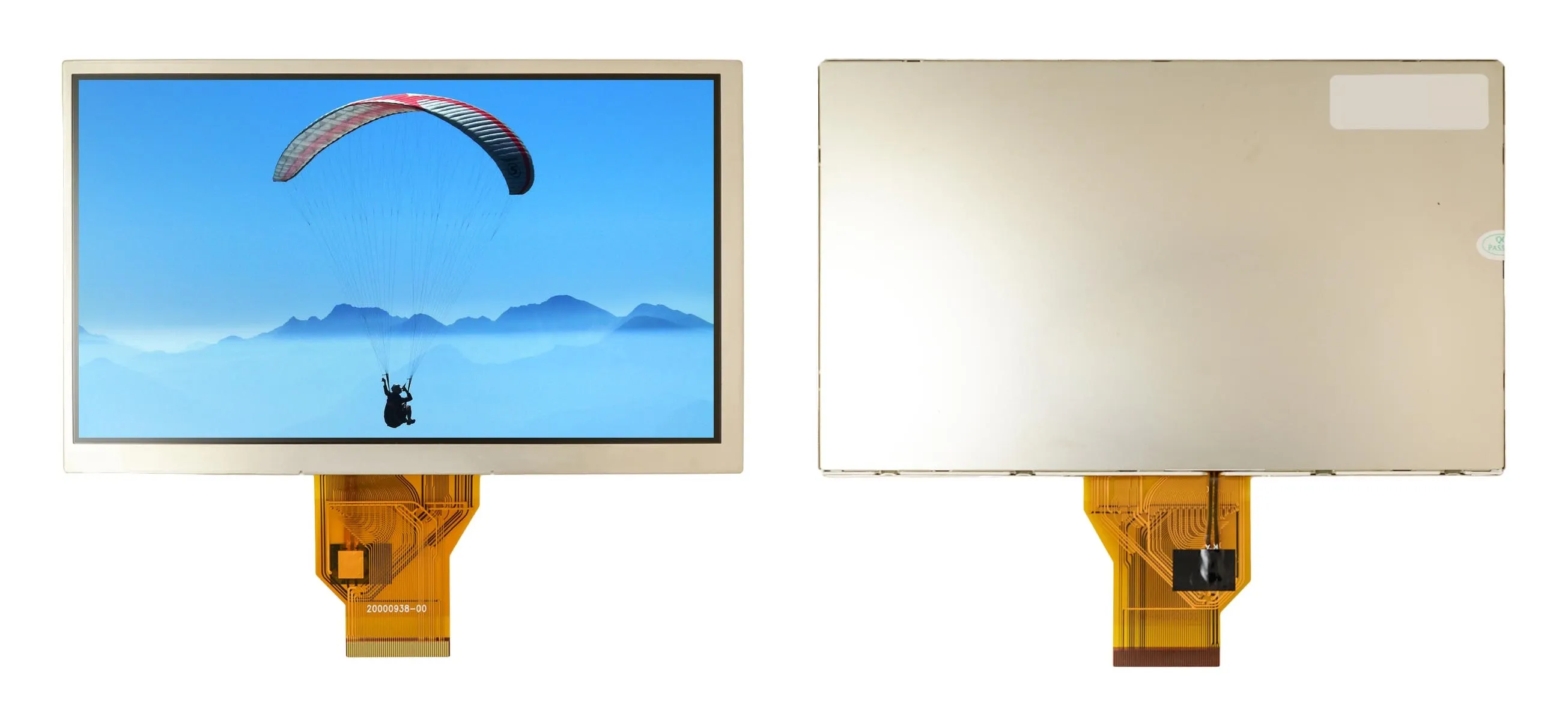

ATM0700L47 Digital TFT LCD Panels

Resources

ATM0700L47

Product Specifics
Overall Module Size	7
Resolution	1024 X 600
Brightness (Nits)	500
Contrast	600
Backlight	LED
Viewing Angle	+80/-80 +70/-60
Weight	150 g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	LVDS
Active Area	154.21X85.92 mm
Outline Dimension	164.9X100.0X7.1 mm
Viewing Direction	6 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
