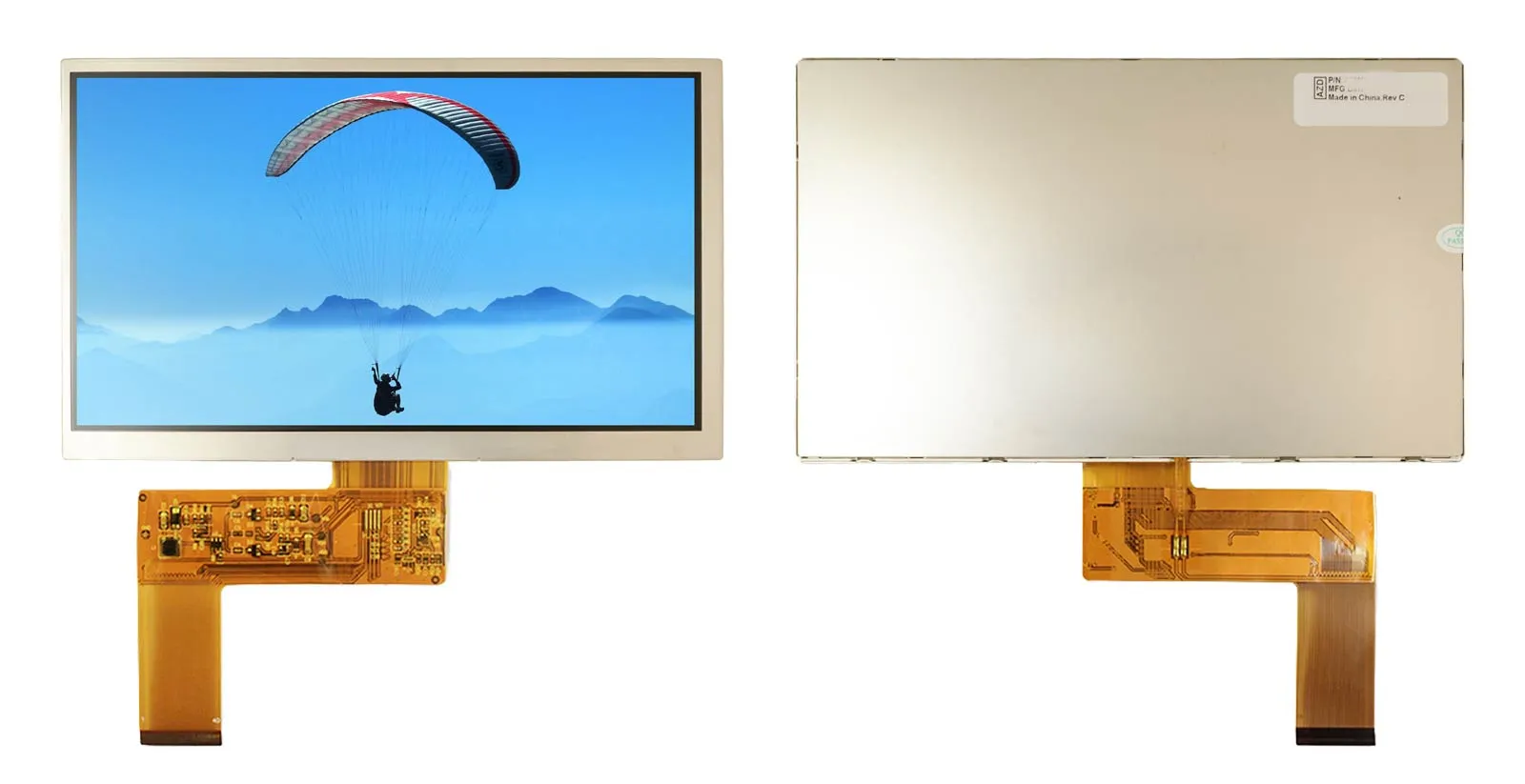

ATM0700D38B Digital TFT LCD Panels

Resources

ATM0700D38B

Product Specifics
Overall Module Size	7
Resolution	800 X 480
Brightness (Nits)	700
Contrast	500
Backlight	LED
Viewing Angle	+70/-70 +60/-50
Weight	-
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	Digital RGB
Active Area	153.6X86.64mm
Outline Dimension	164.90X100.0X3.5 mm
Viewing Direction	6 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
