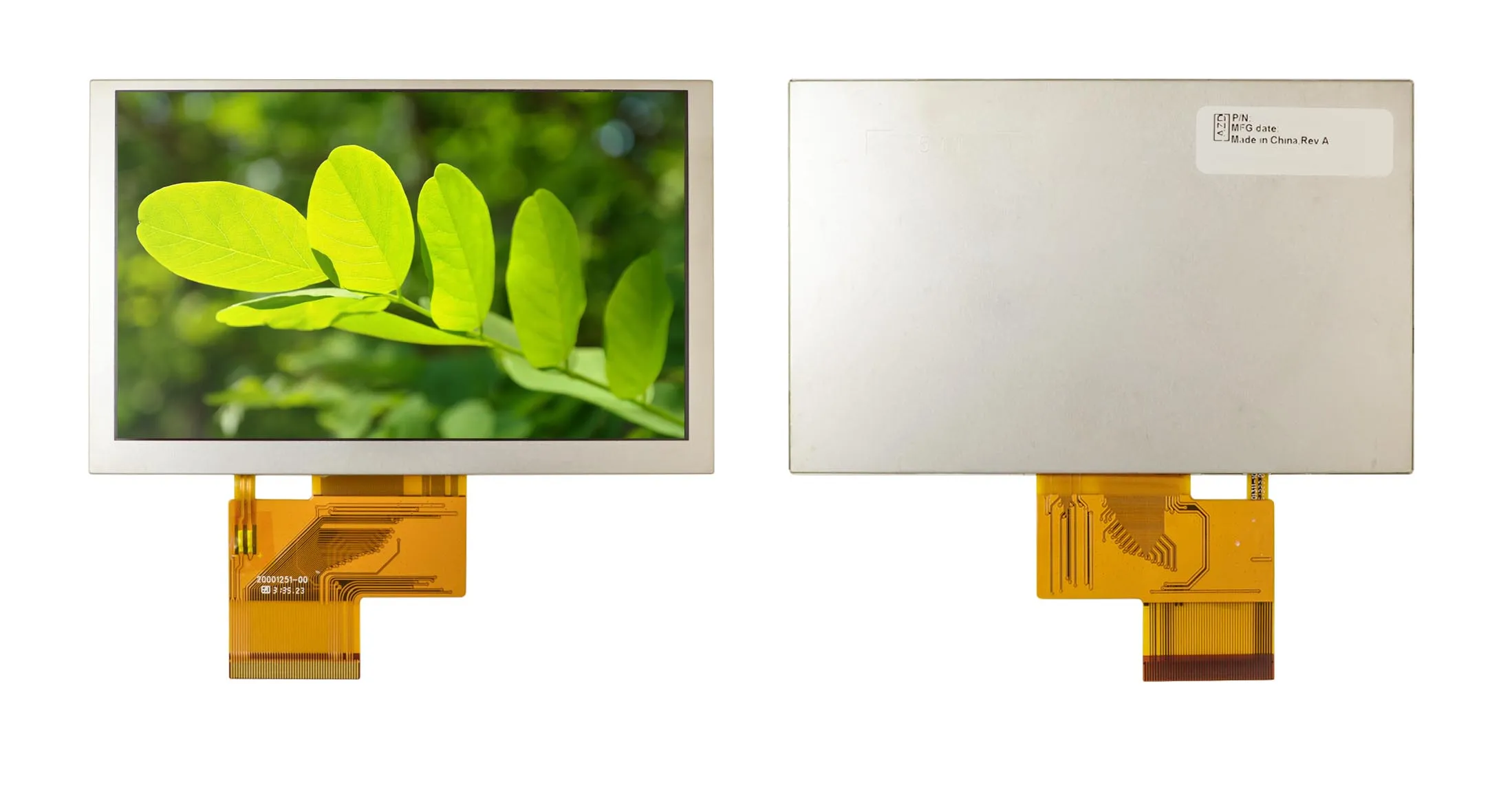

ATM0500D12 Digital TFT LCD Panels

Resources

ATM0500D12

Product Specifics
Overall Module Size	5
Resolution	480 X 272
Brightness (Nits)	350
Contrast	800
Backlight	LED
Viewing Angle	+70/-70 +70/-50
Weight	-
Operation Temperature (℃)	-20~+60
Storage Temperature (℃)	-30~+70
Interface	Digital RGB
Active Area	110.88X62.832mm
Outline Dimension	120.7X75.8X3.10mm
Viewing Direction	12 O'clock
Bonding Type	-
Pixel Configuration	Stripe
