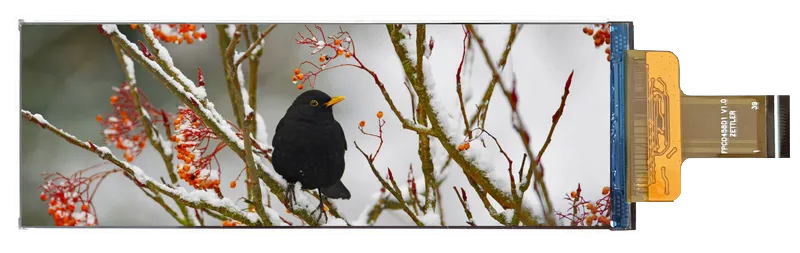

ATM0458D1 Digital TFT LCD Panels

Resources

ATM0458D1

Product Specifics
Overall Module Size	4.58
Resolution	320 X 960
Brightness (Nits)	450
Contrast	1000
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight	2.6g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	18bit RGB interface
Active Area	36.768x110.304 mm
Outline Dimension	41.57x118.8x2.5mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
