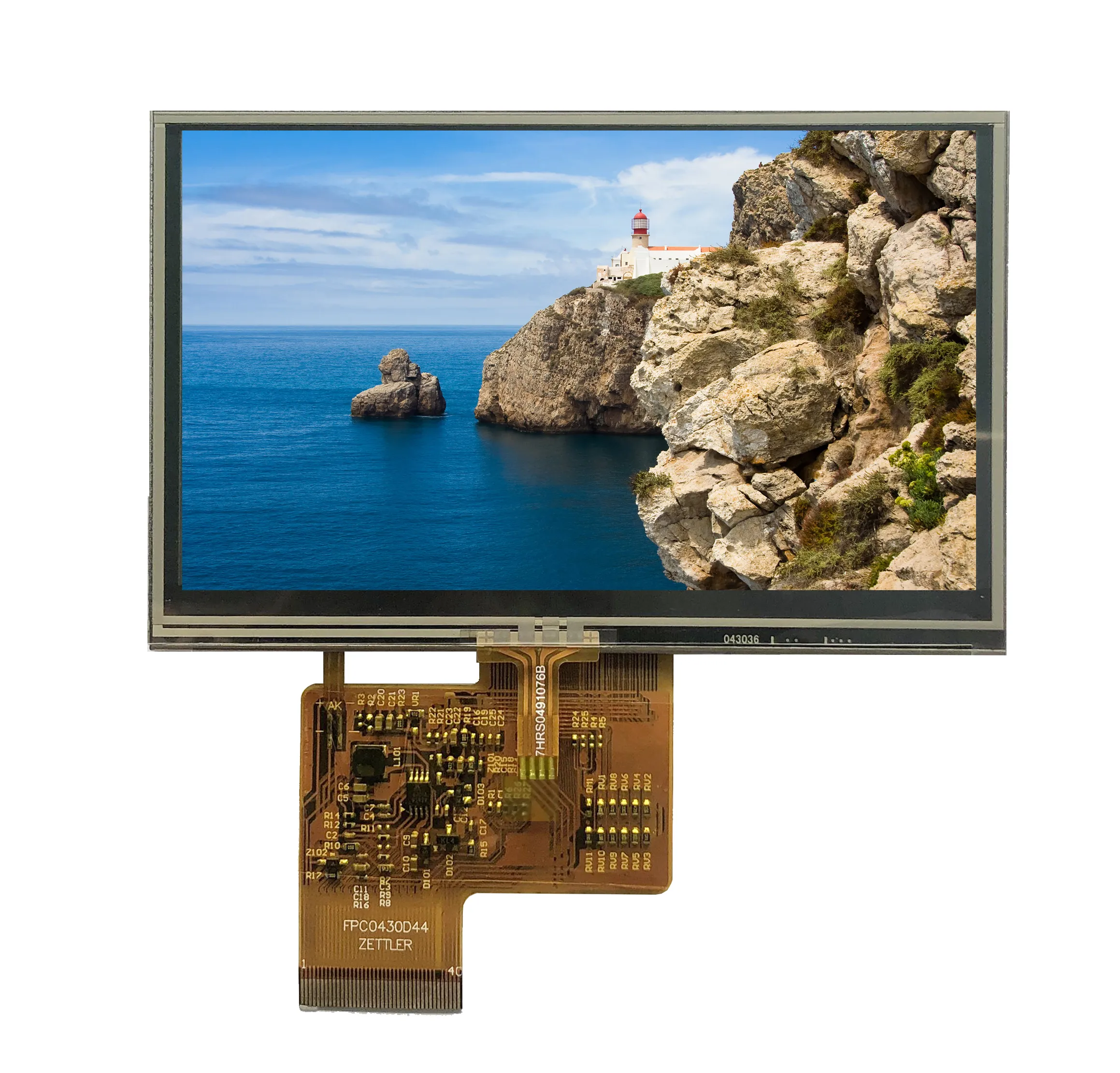

ATM0430D52-T Digital TFT LCD Panels

Resources

ATM0430D52-T

Product Specifics
Overall Module Size	4.3
Resolution	480 X 272
Brightness (Nits)	400
Contrast	-
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight	58g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	RGB
Active Area	95.04X53.856mm
Outline Dimension	105.5X67.2X4.05mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
