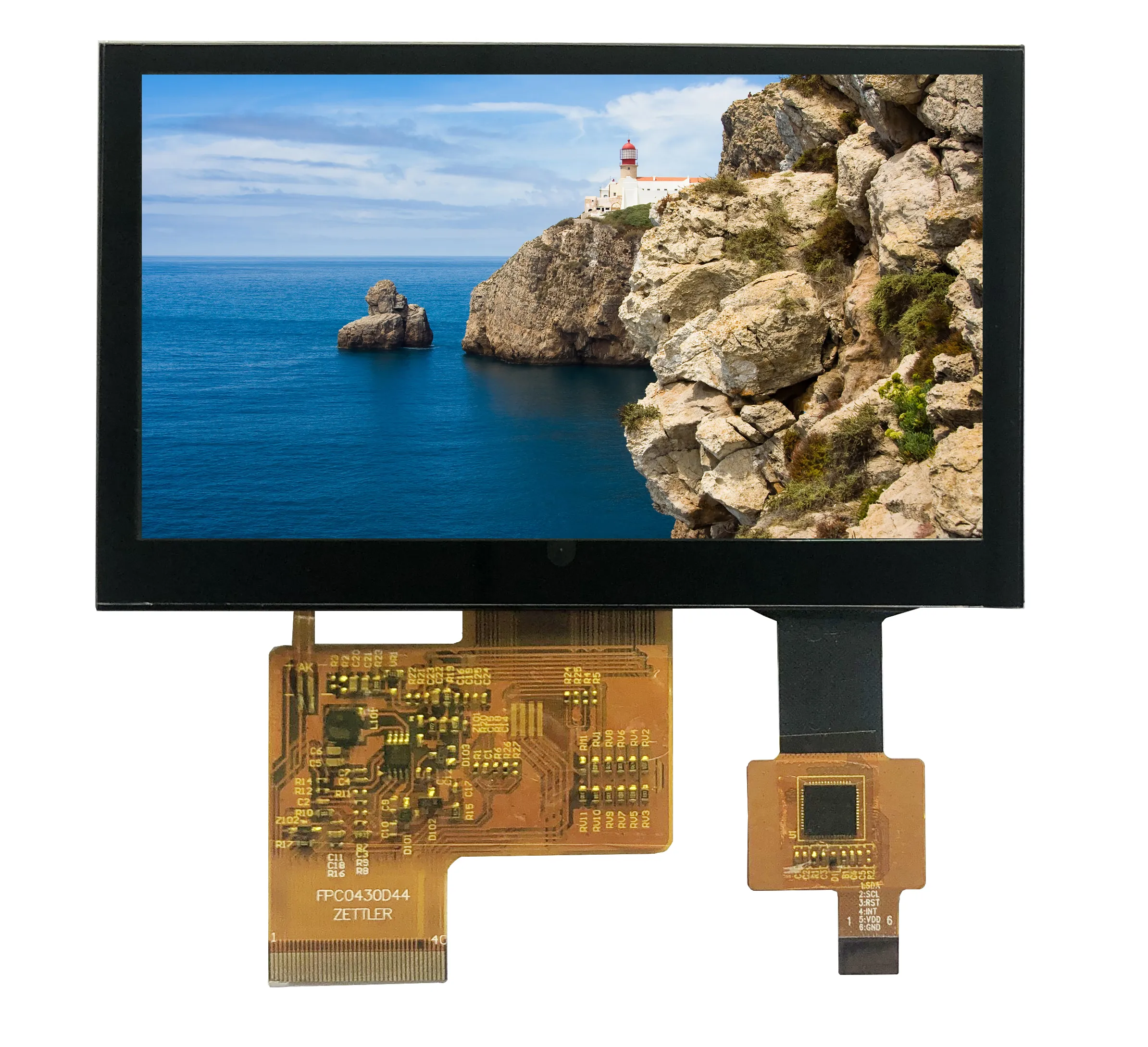

ATM0430D44-CT Digital TFT LCD Panels

Resources

ATM0430D44-CT

Product Specifics
Overall Module Size	4.3
Resolution	800 X 480
Brightness (Nits)	600
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+80
Storage Temperature (℃)	-30~+70
Interface	RGB
Active Area	95.04X53.856mm
Outline Dimension	105.50X67.20X4.15mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
