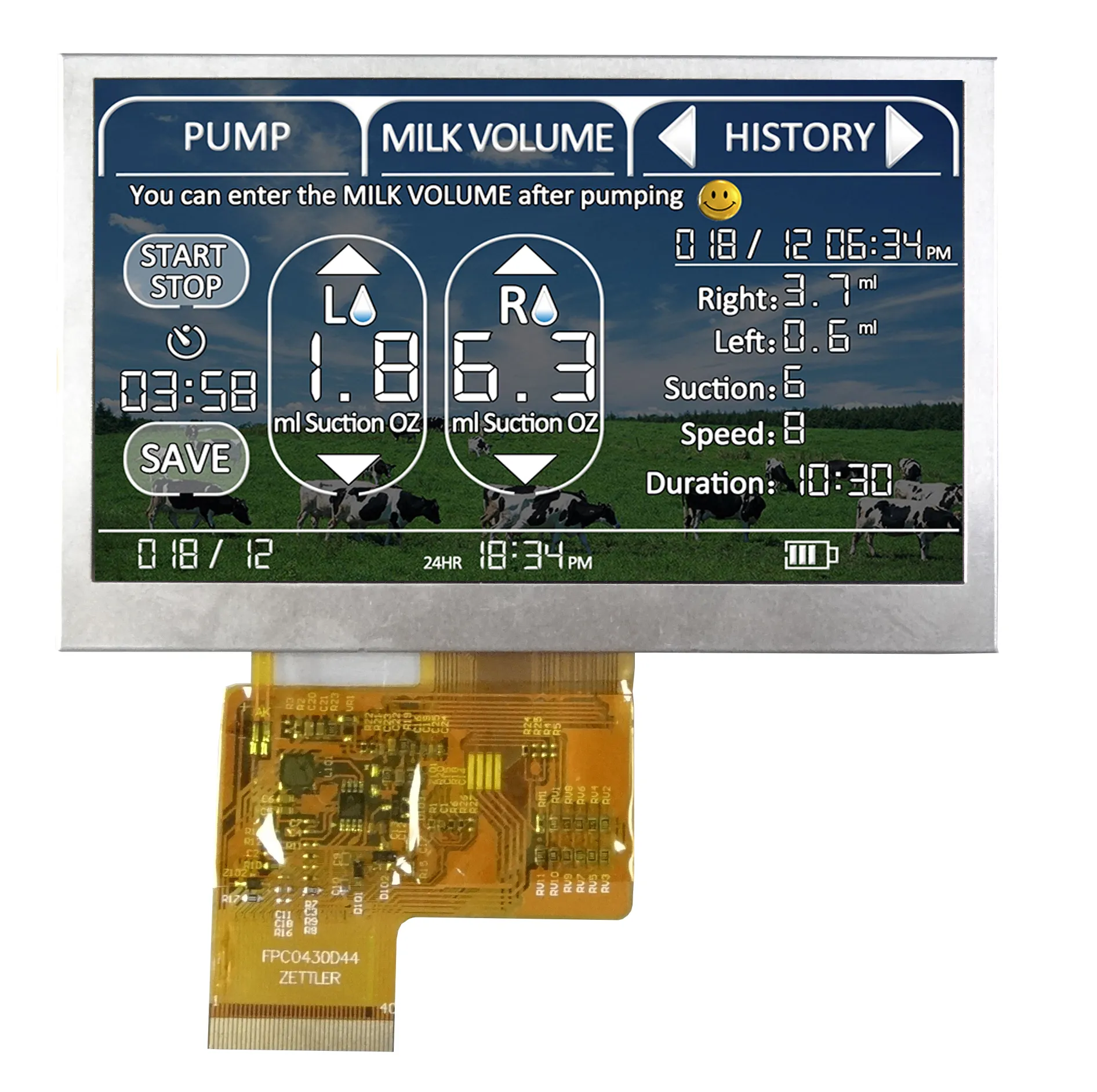

ATM0430D44 Digital TFT LCD Panels

Resources

ATM0430D44

Product Specifics
Overall Module Size	4.3
Resolution	800 X 480
Brightness (Nits)	700
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+80
Storage Temperature (℃)	-30~+70
Interface	RGB
Active Area	95.04X53.856mm
Outline Dimension	105.50X67.20X2.60mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
