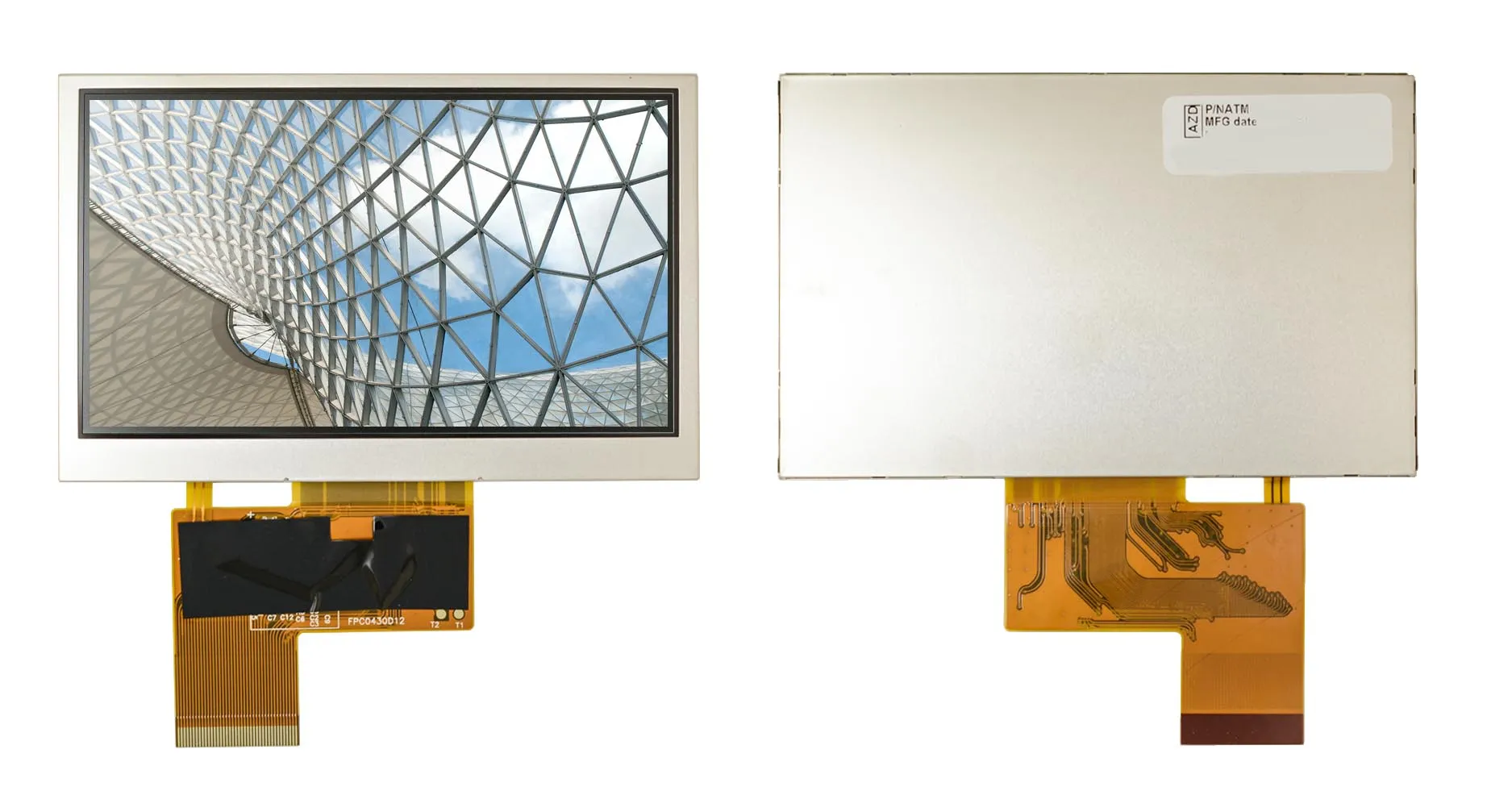

ATM0430D19A Digital TFT LCD Panels

Resources

ATM0430D19A

Product Specifics
Overall Module Size	4.3
Resolution	480 X 272
Brightness (Nits)	250
Contrast	500
Backlight	LED
Viewing Angle	+50/-50 +30/-50
Weight	44g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	Digital RGB
Active Area	95.04mmX53.856mm
Outline Dimension	105.5X67.2X2.9mm
Viewing Direction	12 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
