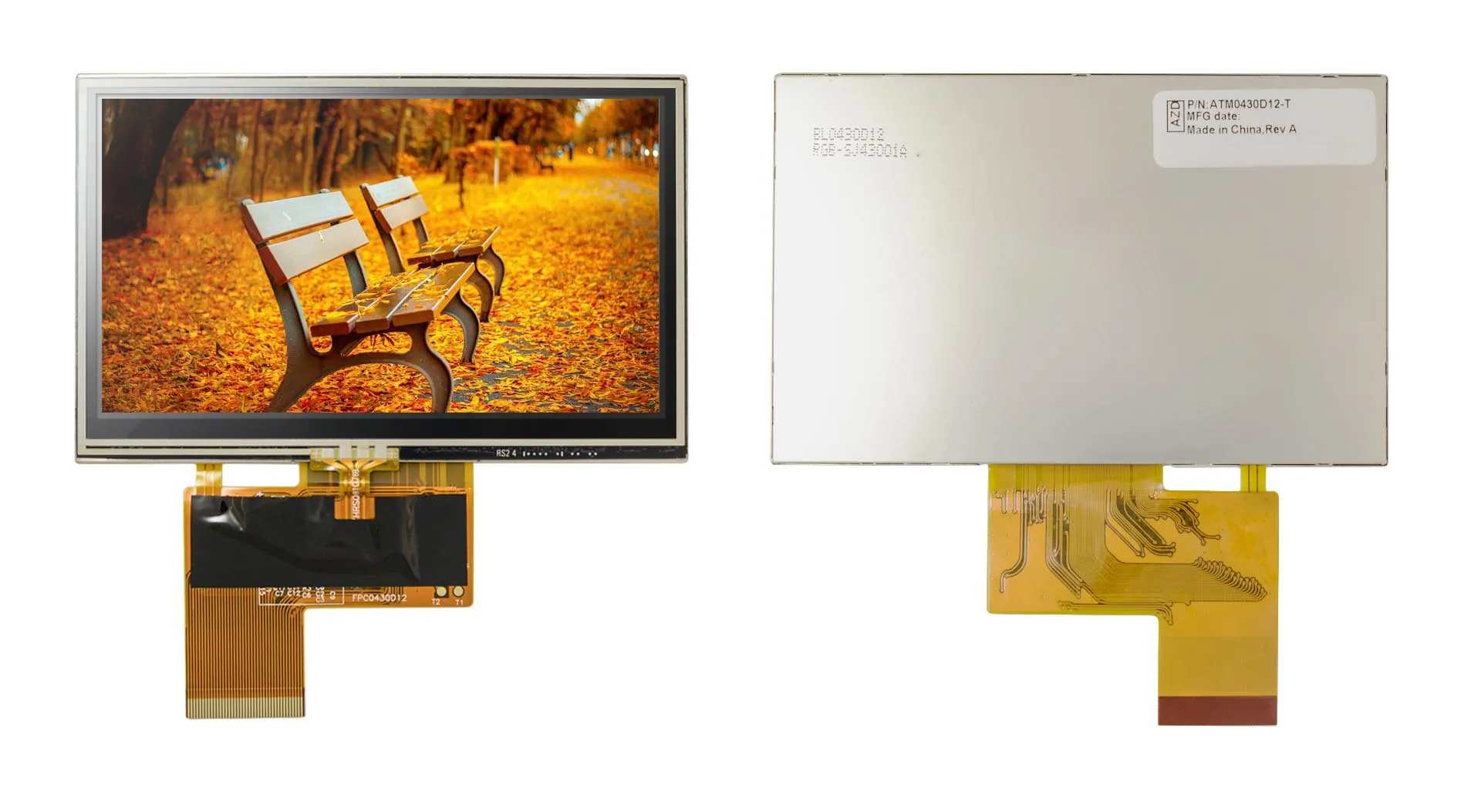

ATM0430D12-T Digital TFT LCD Panels
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 4.3 |
| Resolution | 480 X 272 |
| Brightness (Nits) | 400 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle |
+70/-50 +70/-70 |
| Weight | 58 g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 95.04X53.856 mm |
| Outline Dimension | 105.58X67.2X4.05 mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
