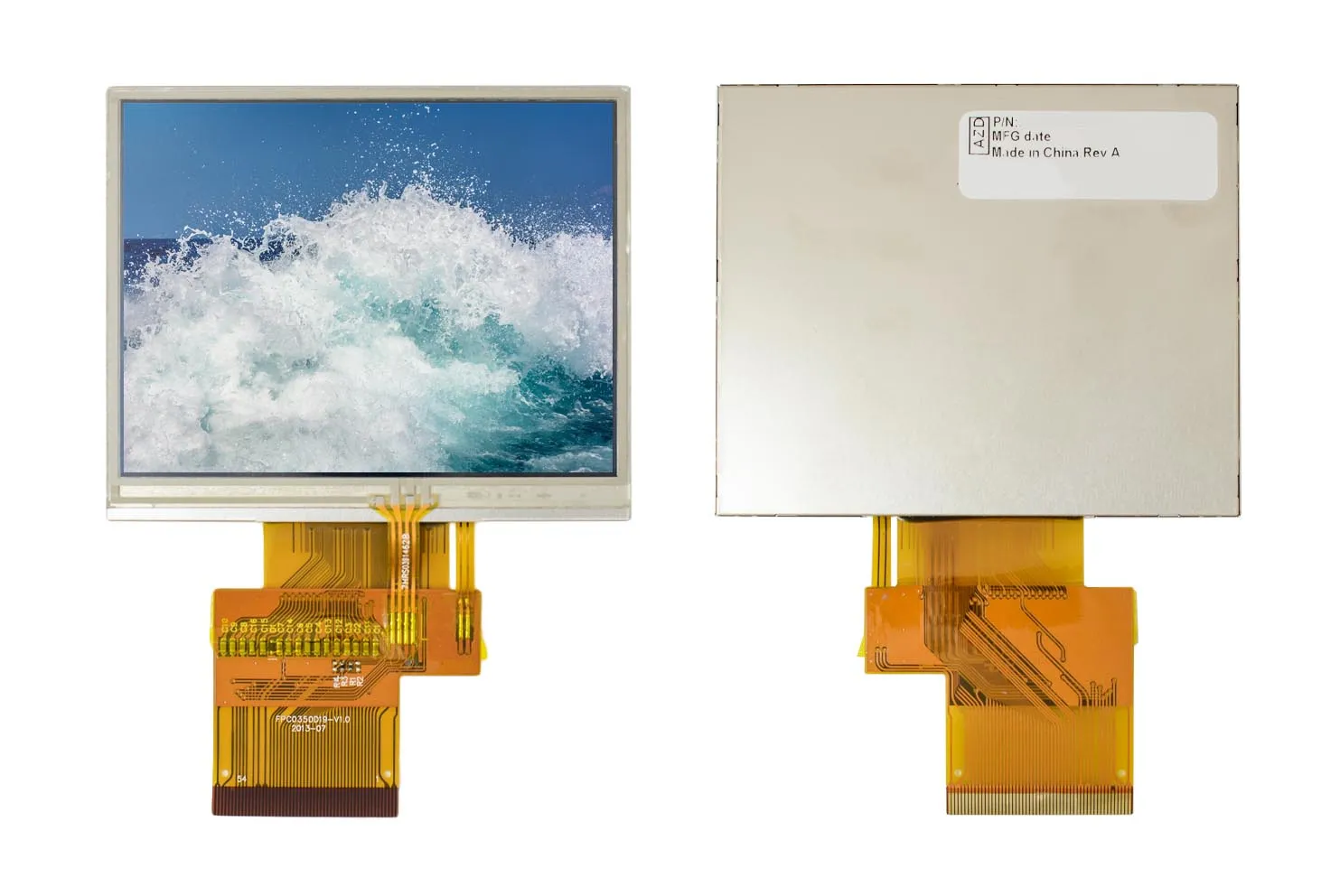

ATM0350D19 Digital TFT LCD Panels

Resources

ATM0350D19

Product Specifics
Overall Module Size	3.5
Resolution	320 X 240
Brightness (Nits)	625
Contrast	450
Backlight	LED
Viewing Angle	+55/-60 +75/-75
Weight	-
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	Digital RGB
Active Area	70.08X52.56mm
Outline Dimension	77.0X64.0X3.3mm
Viewing Direction	6 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
