ATM0350D15-T Digital TFT LCD Panels

Resources

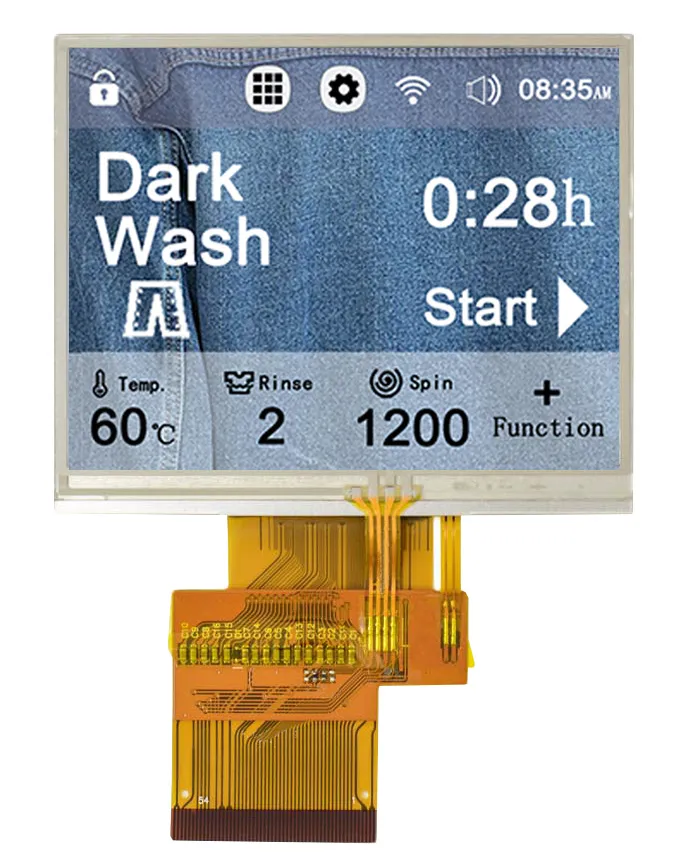

ATM0350D15-T

Product Specifics
Overall Module Size	3.5
Resolution	320 X 240
Brightness (Nits)	400
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~70
Storage Temperature (℃)	-20~70
Interface	RGB
Active Area	70.08X52.56mm
Outline Dimension	76.90X63.90X4.45mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
