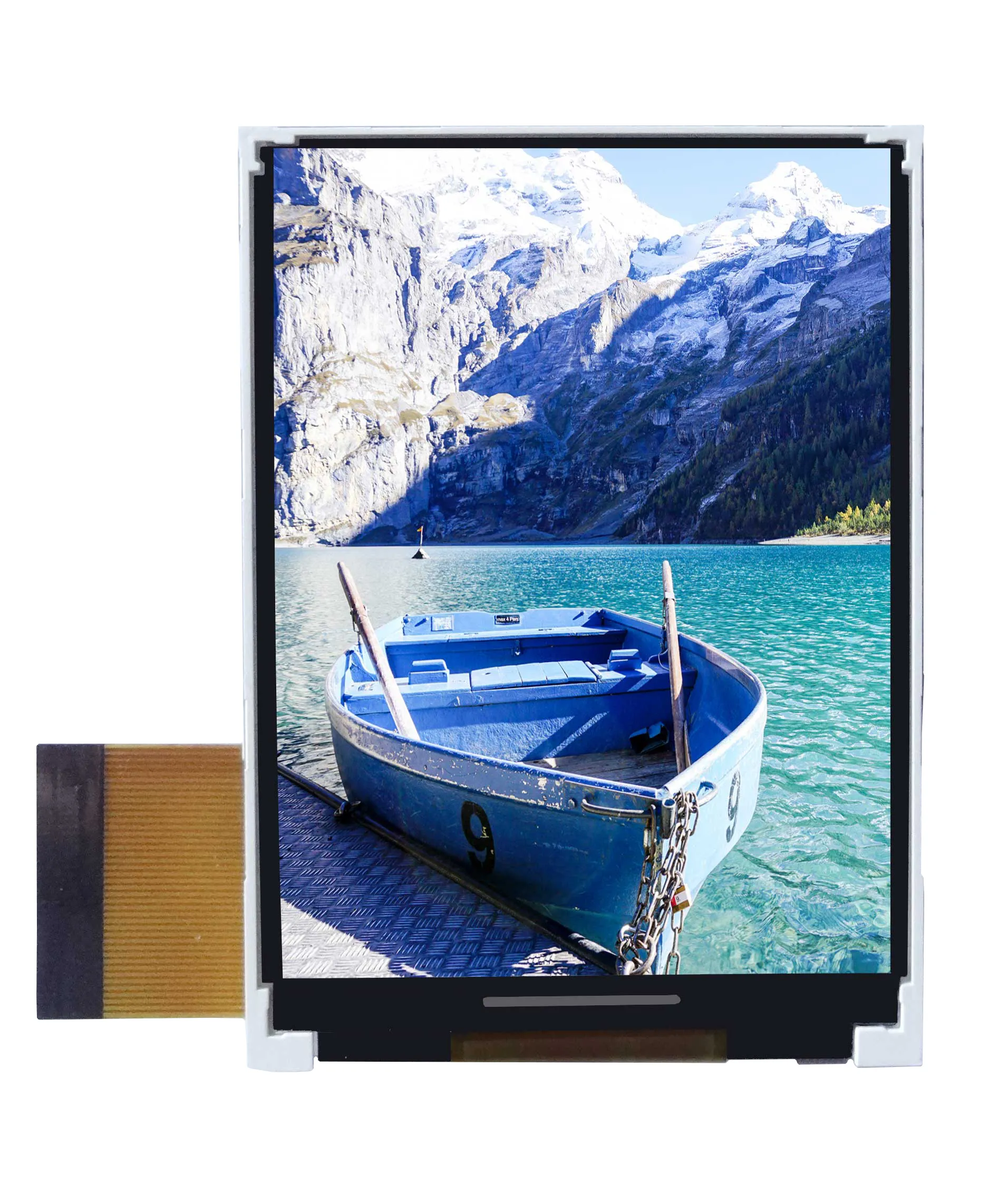

ATM0280B3 Digital TFT LCD Panels

Resources

ATM0280B3

Product Specifics
Overall Module Size	2.8
Resolution	240 X 320
Brightness (Nits)	800
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	RGB/MCU optional
Active Area	43.2X57.6mm
Outline Dimension	62.4X81.6X2.16mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
