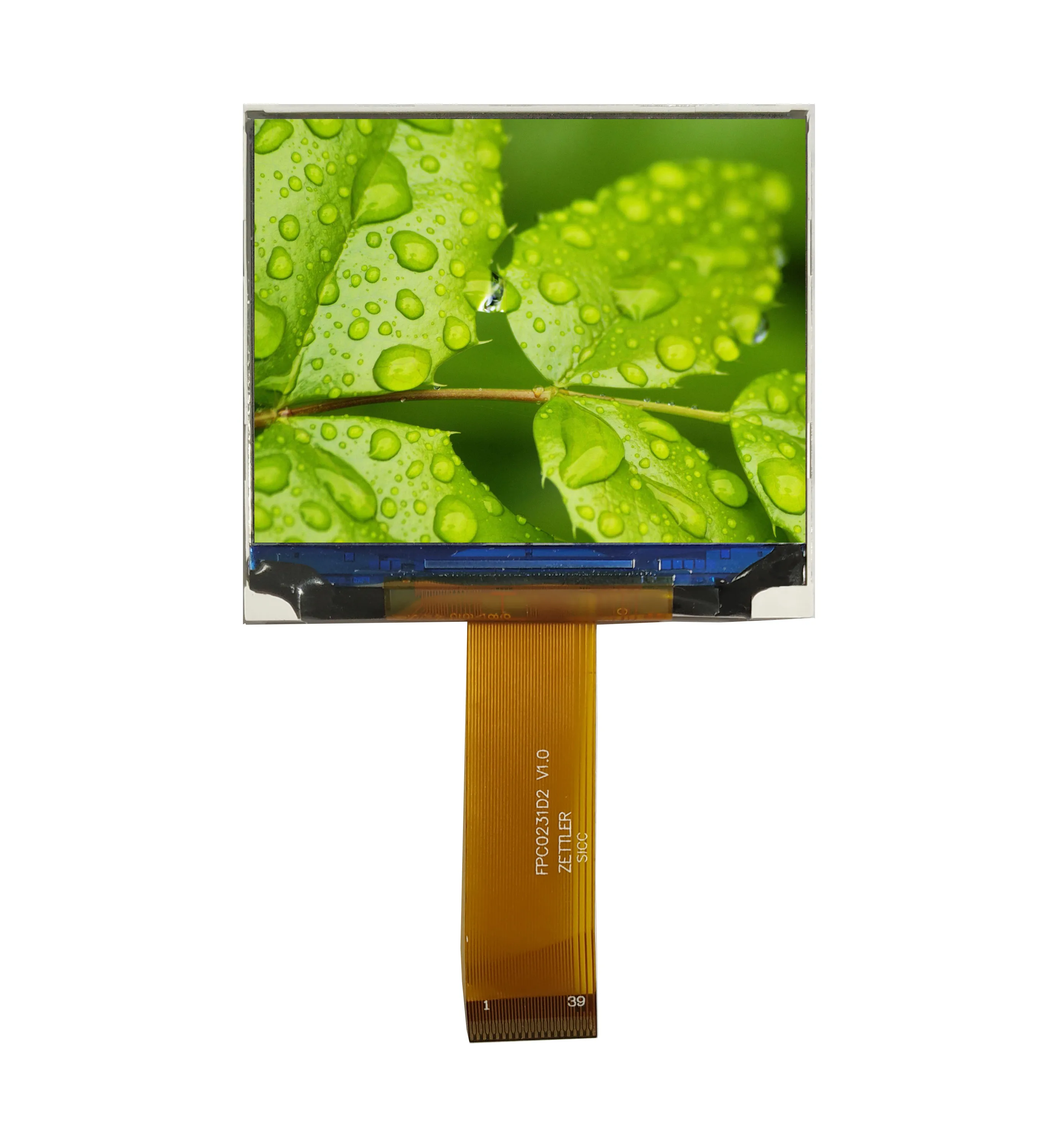

ATM0231D2 Digital TFT LCD Panels

Resources

ATM0231D2

Product Specifics
Overall Module Size	2.31
Resolution	320 X 240
Brightness (Nits)	350
Contrast	500
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight	9.7g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	18bit RGB
Active Area	46.752X35.06 mm
Outline Dimension	51X45.8X2.5mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
