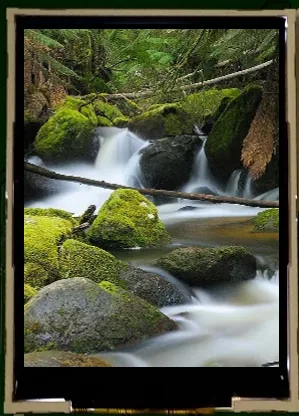

ATM0177B3A-T Digital TFT LCD Panels
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 1.77 |
| Resolution | 128 X 160 |
| Brightness (Nits) | 400 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle |
+70/-70 +30/-45 |
| Weight | 5.4 g |
| Operation Temperature (℃) | -10~+60 |
| Storage Temperature (℃) | -20~+70 |
| Interface | SPI |
| Active Area | 28.032X35.04mm |
| Outline Dimension | 34.70X46.7X4.0mm |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
