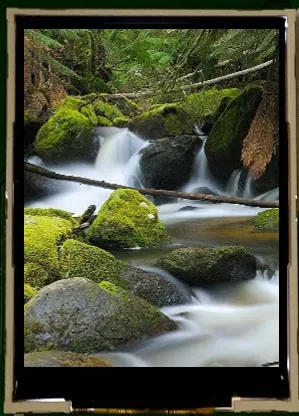

ATM0177B3A Digital TFT LCD Panels

Resources

ATM0177B3A

Product Specifics
Overall Module Size	1.77
Resolution	128 X 160
Brightness (Nits)	450
Contrast	500
Backlight	LED
Viewing Angle	+70/-70 +30/-45
Weight	5.4 g
Operation Temperature (℃)	-10~+60
Storage Temperature (℃)	-20~+70
Interface	SPI
Active Area	28.032X35.04mm
Outline Dimension	34.70X46.7X2.5mm
Viewing Direction	6 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
