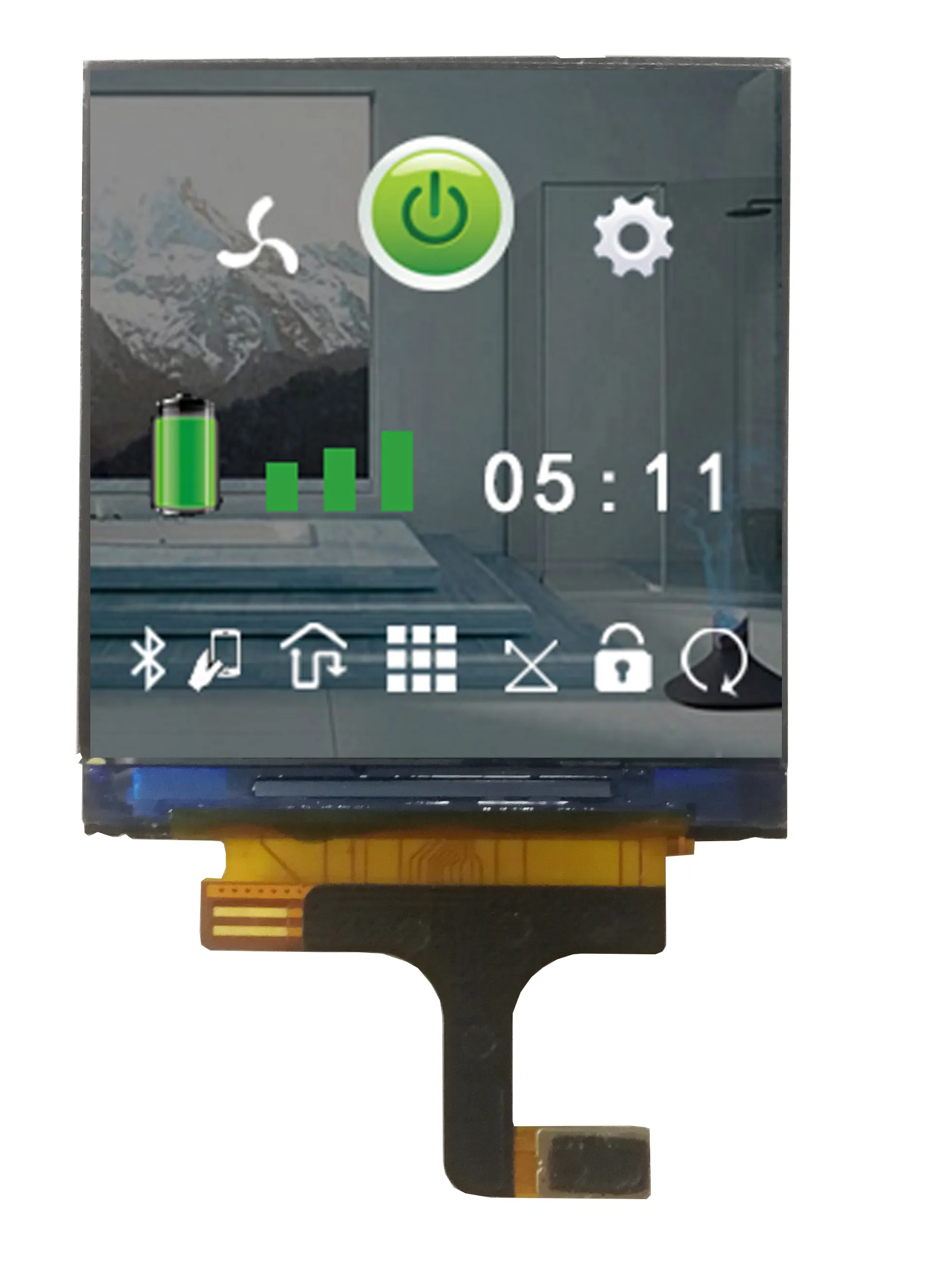

ATM0154B1 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 1.54 |
| Resolution | 240 X 240 |
| Brightness (Nits) | 500 |
| Contrast | 900 |
| Backlight | LED |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+60 |
| Storage Temperature (℃) | -30~+70 |
| Interface | SPI |
| Active Area | 27.72X27.72mm |
| Outline Dimension | 31.52X33.72X1.85mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
