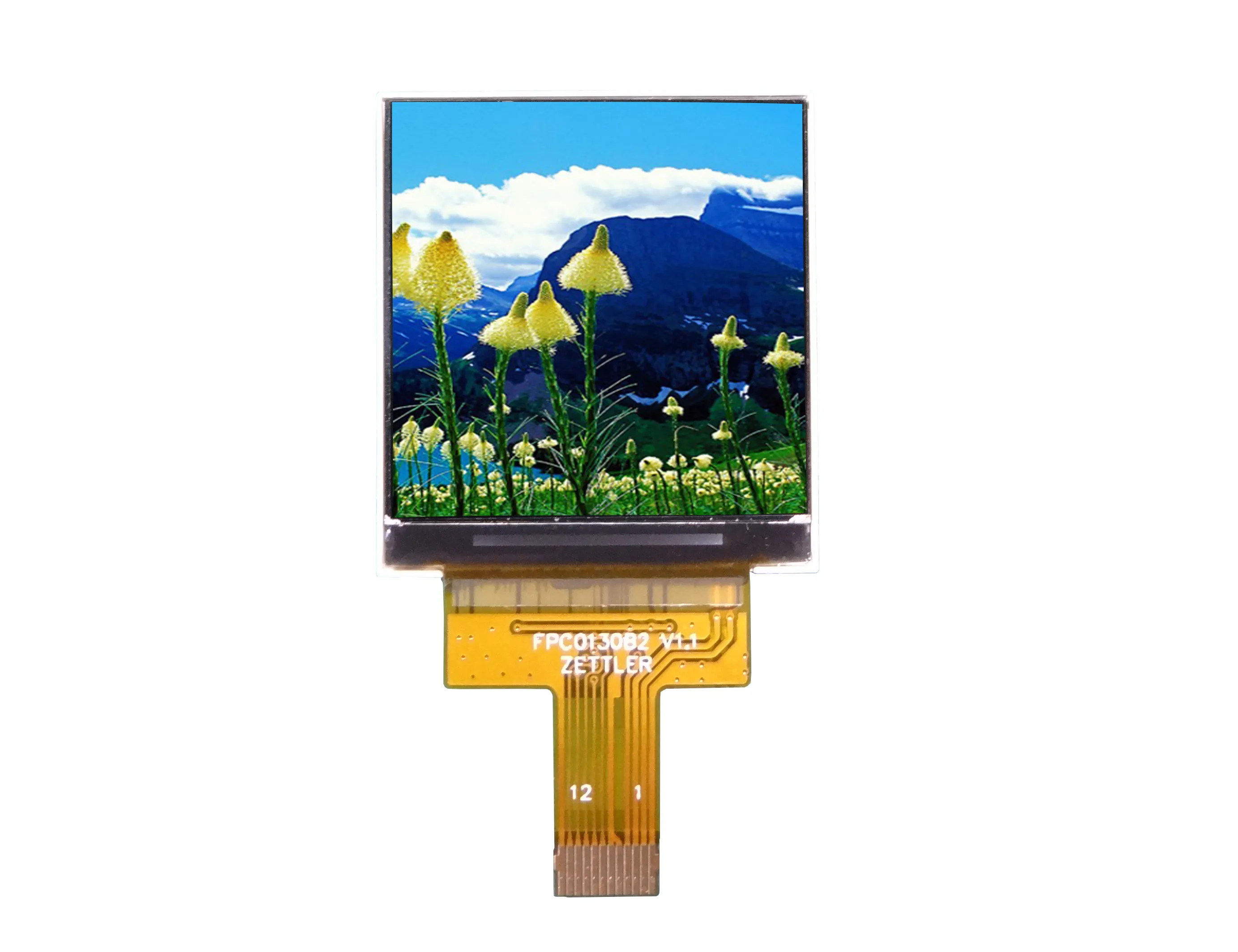

ATM0130B3 Digital TFT LCD Panels

Resources

ATM0130B3

Product Specifics
Overall Module Size	1.3
Resolution	240 X 240
Brightness (Nits)	500
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	RGB/MCU optional
Active Area	23.4X23.4mm
Outline Dimension	26.85X29.55X1.73mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
