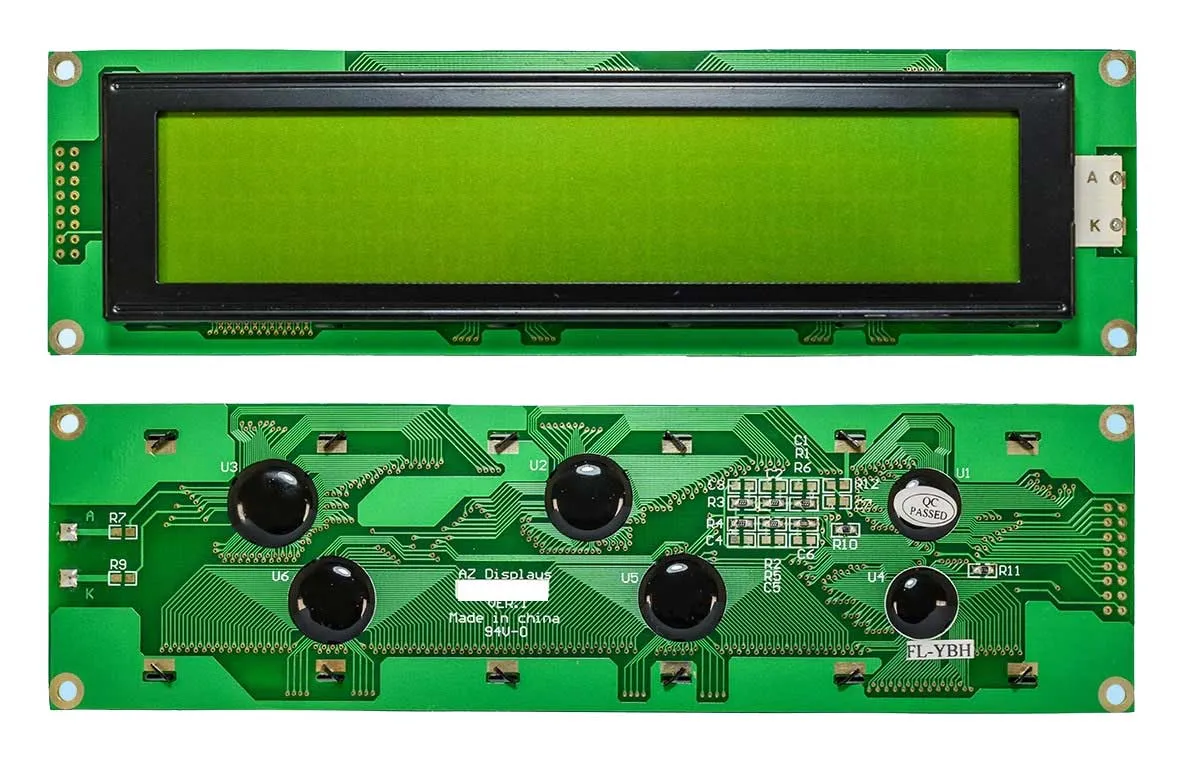

Character Module: ACM4004H-FL-YBW-R
Datasheet: ACM4004H-FL-YBW-R
View Part Drawing
Request a Quote
Check Distributor Stock
Features:
- 40 Characters x 4 Lines
- 5x7 Dot Matrix Character + Cursor
- ST7066U-0A Equivalent
- 4-bit or 8-bit MPU Interface
| Product Specifics | |
|---|---|
| Series | ACM4004H |
| Format | 40 x 4 |
| Viewing Area (mm) | 147.0 x 29.5 |
| Supply Voltage | 5.0V/3.3V |
| Outline Dimensions (mm) | 190.0X54.0X9.5mm |
| Polarizer Type | Transflective Positive |
| Backlight Type | LED |
| Backlight Color | Yellow/Green |
| Fluid Type | Yellow Mode STN |
Nomenclature Diagram
