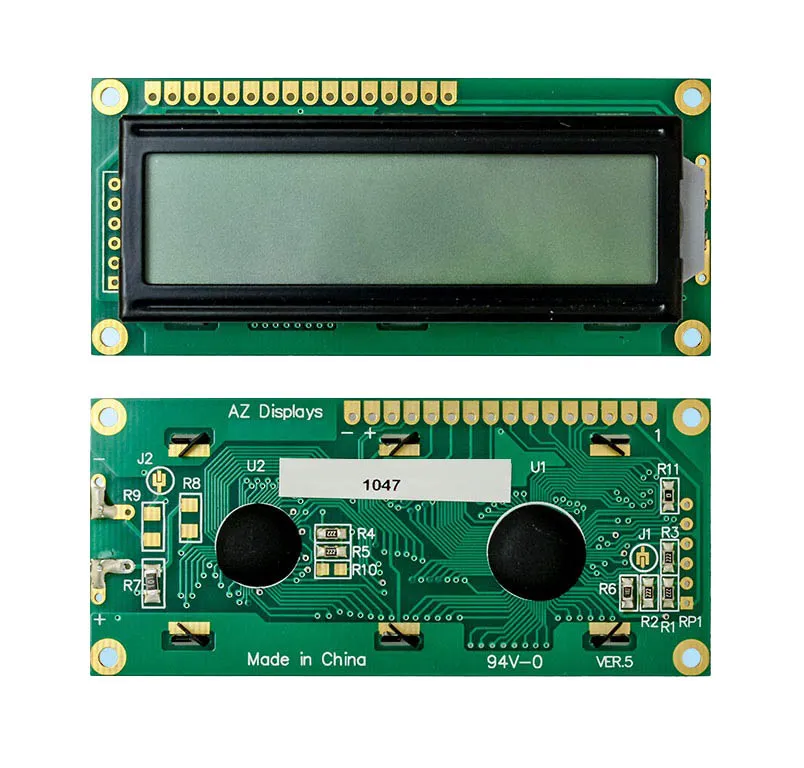

Character Module: ACM1602KC-NLW-BBW-R

Resources

ACM1602KC

Features:

  • 16 Characters x 2 Lines
  • 5x7 Dot Matrix
  • ST7066U-0A Equivalent
  • 4-bit or 8-bit MPU Interface
Product Specifics
Series ACM1602KC
Format 16 x 2
Viewing Area (mm) 64.5 x 16.4
Supply Voltage 5.0V/3.3V
Outline Dimensions (mm) 84.0X44.0X13.5mm
Polarizer Type Transmissive Negative
Backlight Type LED
Backlight Color White
Fluid Type Blue Mode STN

Nomenclature Diagram

Character Module Nomenclature
