Custom Glass Design Guidelines

SIMPLE STEPS TO A QUOTE

1. GLASS TYPE:

Upload Your Design

Choose a glass type based off your viewing needs:

TN   STN   FSTN   BTN/SILK SCREEN

2. Interface:

AZ DISPLAYS CUSTOM GLASS LCD PINS
AZ DISPLAYS CUSTOM GLASS LCD ZEBRA STRIP ELASTOMERIC

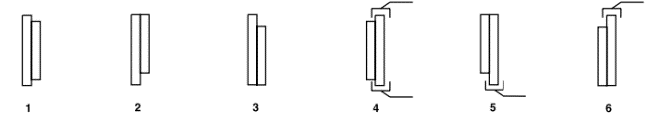

Interface Configuration:

3. LED Backlight Color Options:

All backlights come with a diffuser film to evenly disperse
the light from the LED’s to eliminate “hot spots”.

White
Blue
Red
Green
Yellow
No Backlight

DESIGN GUIDELINES

Custom Glass LCD InfoMinimumMaximum
SizeNo less than 1.5″No more than 10″
Width of GlassNo less than 15mmNo more than 160mm
Large Glass HeightNo less than 15mmNo more than 160mm
Small Glass HeightNo less than 14mmNo more than 150mm
Viewing AreaNo less than 1.4″No more than 9.8″
First ContactPIN and Zebra
Glass Thickness1.7mm(seldom use), 2.0mm(common), 2.8mm(common)
Contact Pitch(Metal PIN)Pitch=1.5mm, Pitch=1.8mm, Pitch=2.0mm, Pitch=2.54mm
Contact Pitch(Zebra)Pitch: more than 0.6mmNo upper limit
