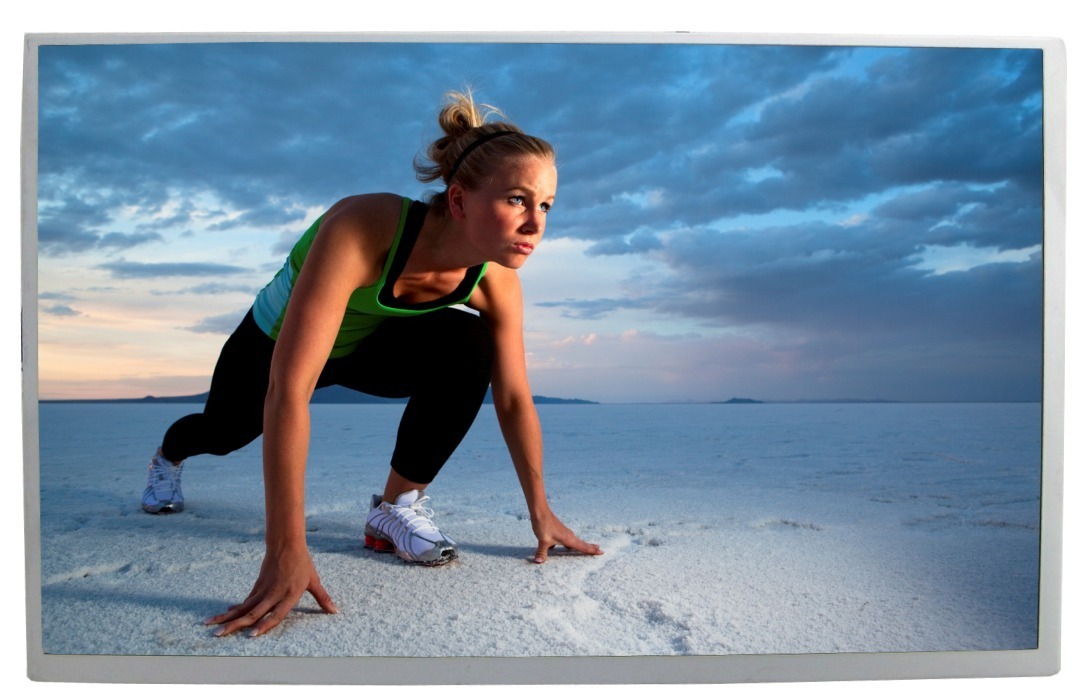

Industrial 7″ TFT Product Line

Features

800 x RGB x 480
Wide VGA Resolution
LED Backlight
Available in 250, 500 and 1,000 nits in the same footprint ⁽¹⁾
LVDS and Digital RGB interface (TTL)
RoHS Compliant
Geared for long market presence

Press release(s) involving
the ATM0700D6A, ATM0700D6B, ATM0700D6C,
ATM0700D6D, ATM0700D6E and ATM0700D6F series

7 Inch TFT with 250, 500 and 1000 nits in one foot print

7.00″ Diagonal TFTs Overview (Click on Series for detailed information or click on price to purchase a sample)
Series	Sample Price	Project Quote	Resolution	Outline Dimensions	Active Area	Brightness (nits)	Interface	PDF
NEW ATM0700D6A	54.52 USD	Quote	800XR.G.B.X480	164.9X100.0X5.7	154.08X85.92	250	Digital RGB
NEW ATM0700D6A-T	67.24 USD	Quote	800XR.G.B.X480	164.9X100.0X7.1	154.08X85.92	200	Digital RGB
NEW ATM0700D6B	59.93 USD	Quote	800XR.G.B.X480	164.9X100.0X5.7	154.08X85.92	500	Digital RGB
NEW ATM0700D6B-T	69.05 USD	Quote	800XR.G.B.X480	164.9X100.0X7.1	154.08X85.92	400	Digital RGB
NEW ATM0700D6C	74.51 USD	Quote	800XR.G.B.X480	164.9X100.0X5.7	154.08X85.92	1000	Digital RGB
NEW ATM0700D6C-T	87.23 USD	Quote	800XR.G.B.X480	164.9X100.0X7.1	154.08X85.92	900	Digital RGB
NEW ATM0700L6D	66.99 USD	Quote	800XR.G.B.X480	170.9X106.0X11.5	154.08X85.92	250	LVDS
NEW ATM0700L6E	69.99 USD	Quote	800XR.G.B.X480	170.9X106.0X11.5	154.08X85.92	250	LVDS
NEW ATM0700L6L (1)	79.99 USD	Quote	800XR.G.B.X480	170.9X106.0X11.5	154.08X85.92	250	LVDS

(All dimensions in mm)

Matching A/D Board Kits (Click on Series for detailed information or click on price to purchase a sample)
Series	Sample Price	Project Quote	Kit Picture				PDF

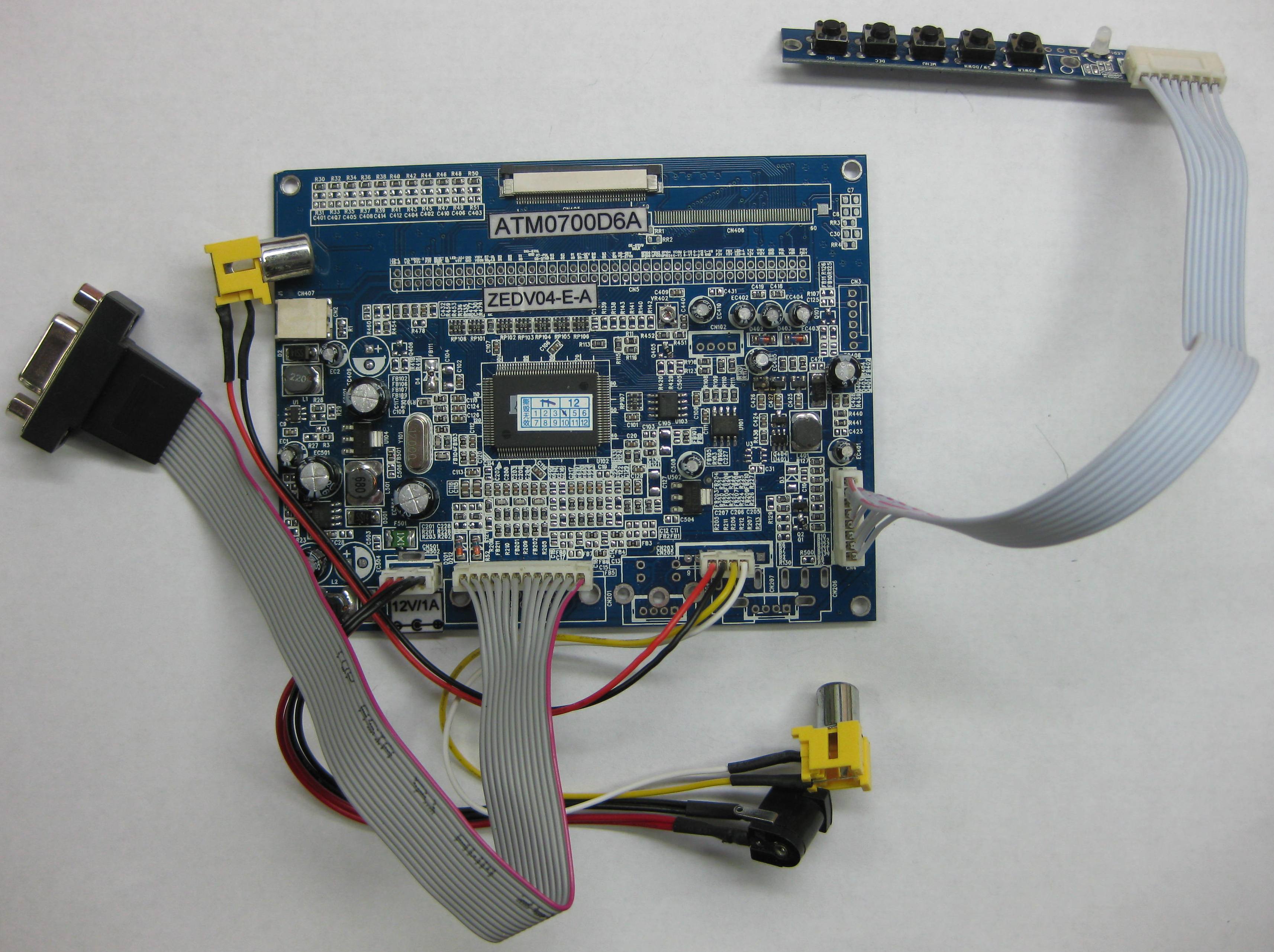

NEW ZEDV04-E-A	63.00 USD	Quote	ZEDV04-E-A

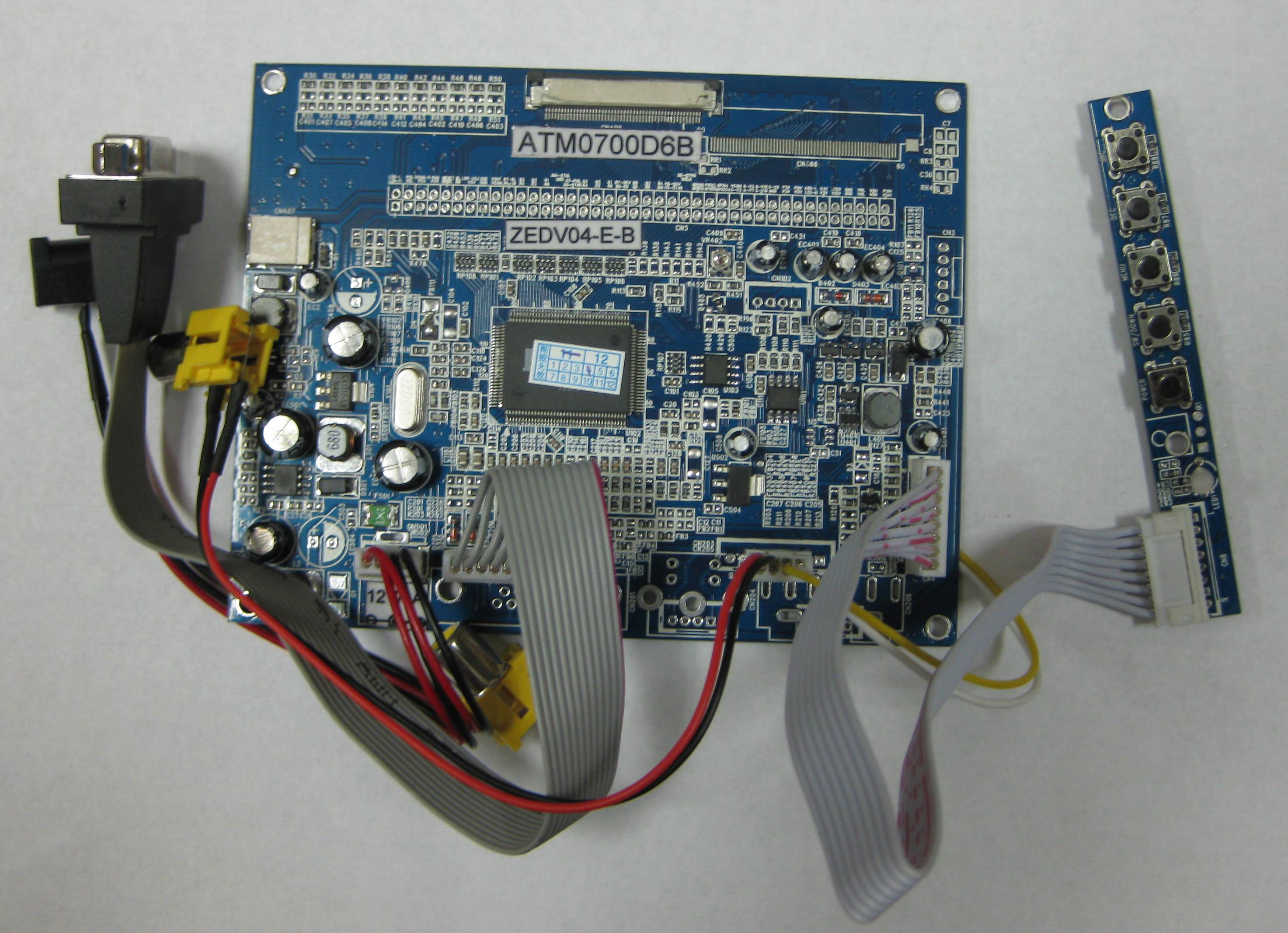

NEW ZEDV04-E-B	63.00 USD	Quote	ZEDV04-E-B

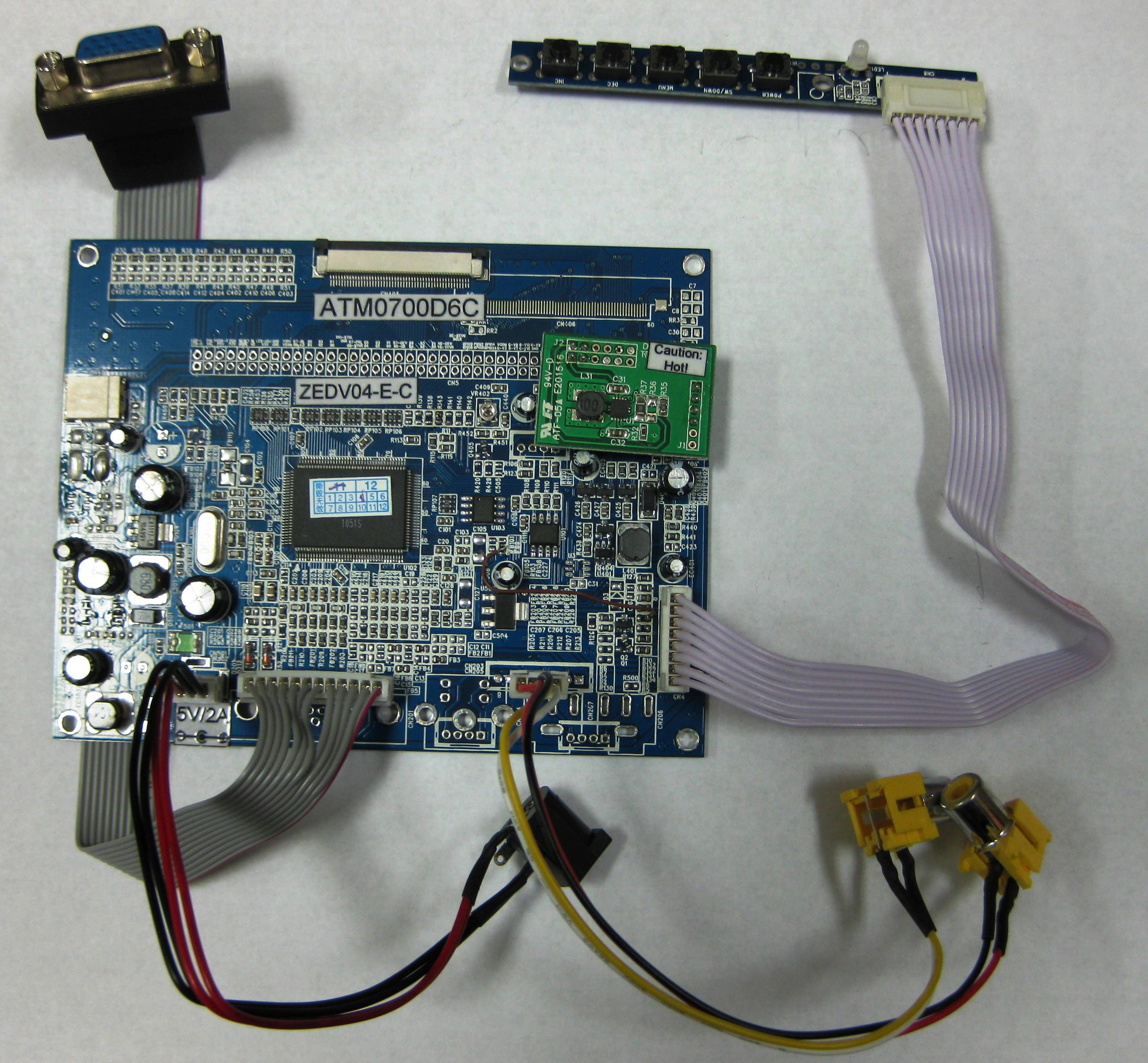

NEW ZEDV04-E-C	74.00 USD	Quote	ZEDV04-E-C

Browse:
Complete
Digital TFT Listing

(1) ATM0700L6L has an external LED driver.
