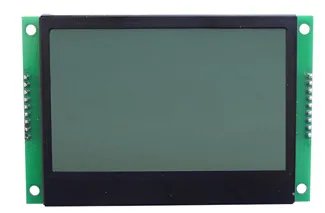

Graphic modules: AQM2416D-FLW-FBE-T
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
Features:
- 240 x 160 Pixel Format
- COG Technology
- White LED Backlight
- -30 C ~ +80 C Operating Temperature
- +80 C / 85% RH 1000 Hour Reliability Test
Description
This LCD module is ideal for outdoor applications, such as Kiosks, Meters, Solar Inverters, and EV charging stations. This LCD module is designed with an enhanced operating temperature of -30C to 80C by means of high-end polarizers and enhanced liquid crystal fluid, capable of passing stringent 85C /85% RH (Relative Humidity) 1000 hours reliability test conditions.
At low temperatures, the liquid crystal fluid maintains its viscosity, allowing the IC to refresh the data logic without any latency in the response time. At the high extreme of the operating temperature spectrum, the polarizer and adhesive materials are able to withstand the heat without warping the film and damaging the optical performance of the LCD module.
| Product Specifics | |
|---|---|
| Series | AQM2416D |
| Format | 240 x 160 |
| Viewing Area (mm) | 78.5 (W) x 47.5 mm (H) |
| Supply Voltage | 3.3V |
| Outline Dimensions (mm) | 98.7x64.2x9.8mm |
| Polarizer Type | Transflective Positive |
| Backlight Type | LED |
| Backlight Color | White |
| Fluid Type | FSTN |
| Dot Size | 0.270 x 0.255 mm |
| Dot Pitch | 0.290 x 0.275 mm |
| Duty | 1/160 |
Nomenclature Diagram
