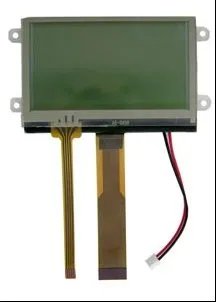

Graphic modules: AQM1264C-FL-YBW

Resources

AQM1264C

Features:

  • 128 x 64 Pixel Format
  • COG Technology
  • Built-in LCD Controller
  • Available with Touch Panel
  • MOQ 2500 for AQM1264C-FL-FBW
  • MOQ 2500 for AQM1264C-FL-YBW-T
Product Specifics
SeriesAQM1264C
Format128 x 64
Viewing Area (mm)70.7 x 38.8
Supply Voltage3.3V
Outline Dimensions (mm)93.7x52.6x6.8mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeYellow Mode STN
Dot Size0.50 x 0.50 mm
Dot Pitch0.52 x 0.52 mm
Duty1/65
