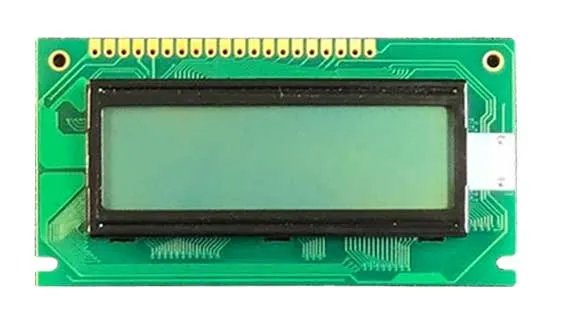

Graphic modules: AGM1232G-FL-GBH

Resources

AGM1232G

Features:

  • 122 x 32 Pixel Format
  • LED Backlight Available
  • On-Board Seikon-Epson SED1520 Controller
  • 8-Bit MPU Interface

Product Specifics
SeriesAGM1232G
Format122 x 32
Viewing Area (mm)60.0 x 18.0
Supply Voltage5.0V/3.3V
Outline Dimensions (mm)84.0x44.0x13.0mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeGrey Mode STN
Dot Size0.40 x 0.45 mm
Dot Pitch0.44 x 0.49 mm
Duty1/32

Nomenclature Diagram

Character Module Nomenclature
