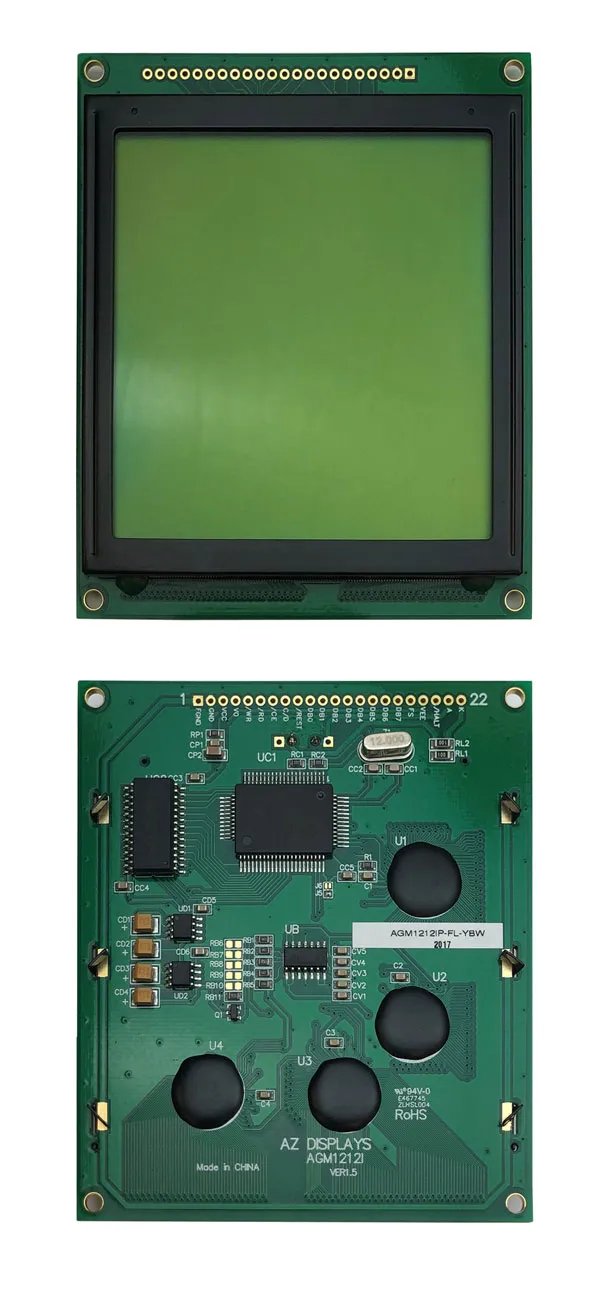

Graphic modules: AGM1212I-FL-YBW

Resources

AGM1212I

Features:

  • 128 x 128 Pixel Format
  • LED Backlight
  • Built-in T6963C Controller
  • Wide Operating Temperature
Product Specifics
SeriesAGM1212I
Format128 x 128
Viewing Area (mm)73.0 x 73.0
Supply Voltage5.0V/3.3V
Outline Dimensions (mm)92.0X106.0X14.5mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeYellow Mode STN
Dot Size0.50 x 0.50 mm
Dot Pitch0.55 x 0.55 mm
Duty1/128

Nomenclature Diagram

Character Module Nomenclature
